| Manufacturer Part Number: | HMCAD1520TR |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8, 12, 14, 16 Bit Analog to Digital Converter 1, 2, 4 Input 4 Pipelined 48-QFN (7x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMCAD1520TR Datasheet |
| Internal Part Number | 898-HMCAD1520TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Speed Analog-to-Digital Converters Wideband Quantizer Solution | |
| Online Catalog | 8/12/14/16 Bit | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Analog to Digital Converters (ADC) | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Bits | 8, 12, 14, 16 | |
| Sampling Rate (Per Second) | 500M, 560M, 660M, 1G | |
| Number of Inputs | 1, 2, 4 | |
| Input Type | Differential | |
| Data Interface | LVDS - Serial | |
| Configuration | MUX-S/H-ADC | |
| Ratio - S/H:ADC | 1:1 | |
| Number of A/D Converters | 4 | |
| Architecture | Pipelined | |
| Reference Type | Internal | |
| Voltage - Supply, Analog | 1.7 V ~ 2 V | |
| Voltage - Supply, Digital | 1.7 V ~ 2 V | |
| Features | Interleavable, Simultaneous Sampling | |
| Operating Temperature | -40°C ~ 85°C | |

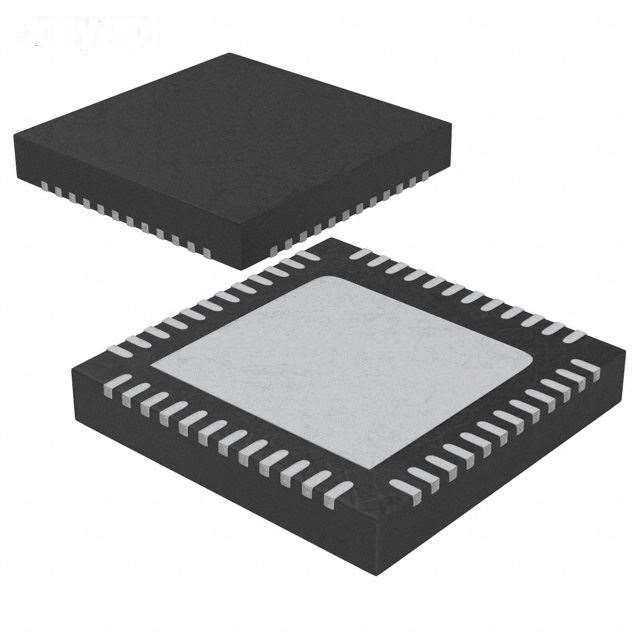

| Package / Case | 48-VFQFN Exposed Pad | |
| Supplier Device Package | 48-QFN (7x7) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMCAD1520TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMCAD1520TR is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMCAD1520TR is new and unused, you can buy HMCAD1520TR Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMCAD1520TR.
