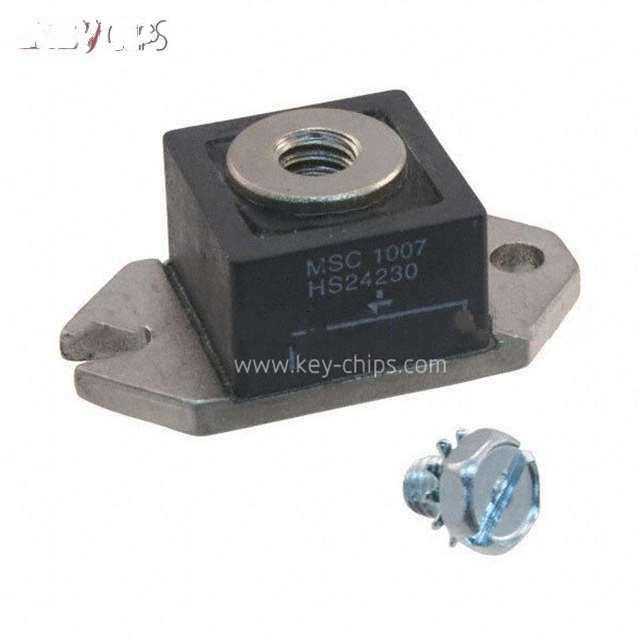

| Manufacturer Part Number: | HS24230 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9018 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE MODULE 30V 240A HALF-PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HS24230 Datasheet |
| Internal Part Number | 898-HS24230 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Schottky Rectifier | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 240A | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 240A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 12mA @ 30V | |
| Capacitance @ Vr, F | 10500pF @ 5V, 1MHz | |
| Mounting Type | Chassis Mount | |
| Package / Case | HALF-PAK | |
| Supplier Device Package | HALF-PAK | |
| Operating Temperature - Junction | * | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HS24230 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HS24230 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of HS24230 is new and unused, you can buy HS24230 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HS24230.
