Manufacturer Part Number: | INA101AM |
---|---|
Manufacturer: | T-I |
Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
Available Quantity: | 9071 Pieces |
Unit Price: | Quote by Email |
Description: | Instrumentation Amplifier 1 Circuit TO-100-10 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | INA101AM Datasheet |
Internal Part Number | 898-INA101AM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Instrumentation | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
Manufacturer | T I | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Amplifier Type | Instrumentation | |
Number of Circuits | 1 | |
Output Type | - | |
Slew Rate | 0.4 V/µs | |
Gain Bandwidth Product | - | |
-3db Bandwidth | 300kHz | |
Current - Input Bias | 15nA | |
Voltage - Input Offset | 25µV | |
Current - Supply | 6.7mA | |
Current - Output / Channel | 10mA | |
Voltage - Supply, Single/Dual (±) | ±5 V ~ 20 V | |
Operating Temperature | -25°C ~ 85°C | |
Mounting Type | Through Hole | |

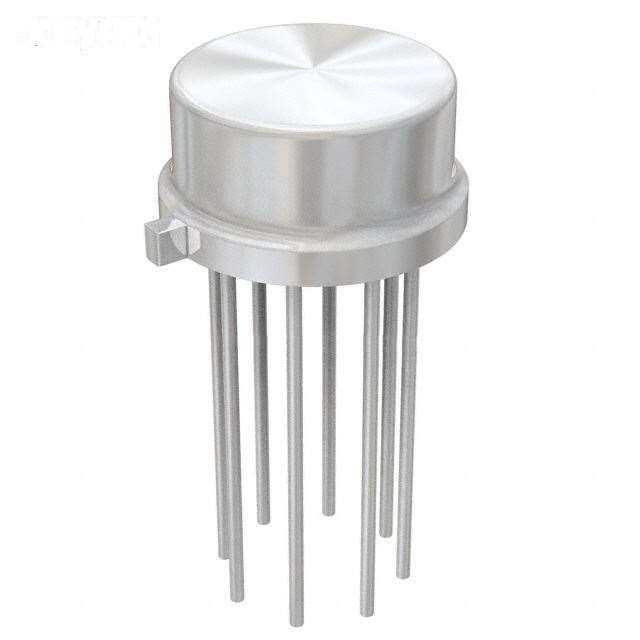

Package / Case | TO-100-10 Metal Can | |
Supplier Device Package | TO-100-10 | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | INA101AM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
INA101AM is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of INA101AM is new and unused, you can buy INA101AM T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for INA101AM.
