| Manufacturer Part Number: | IPB160N04S2L03ATMA2 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH TO262-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IPB160N04S2L03ATMA2 Datasheet |
| Internal Part Number | 898-IPB160N04S2L03ATMA2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | Automotive, AEC-Q101, OptiMOS™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | New Product | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 40V | |
| Current - Continuous Drain (Id) @ 25°C | 160A (Tc) | |
| Rds On (Max) @ Id, Vgs | 2.7 mOhm @ 80A, 10V | |
| Vgs(th) (Max) @ Id | 2V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 230nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 6000pF @ 15V | |
| Power - Max | 330W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

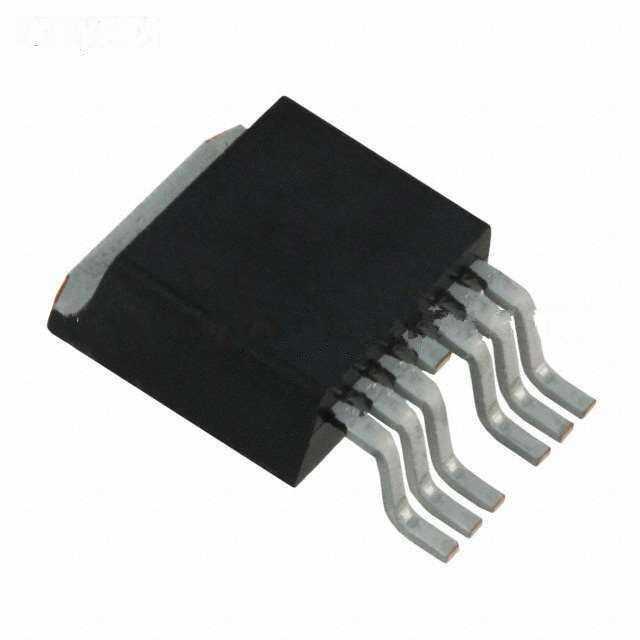

| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | |
| Supplier Device Package | PG-TO263-7-3 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IPB160N04S2L03ATMA2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IPB160N04S2L03ATMA2 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IPB160N04S2L03ATMA2 is new and unused, you can buy IPB160N04S2L03ATMA2 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPB160N04S2L03ATMA2.
