| Manufacturer Part Number: | IPG20N06S3L-23 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 55V 20A TDSON-8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IPG20N06S3L-23 Datasheet |
| Internal Part Number | 898-IPG20N06S3L-23 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | IPG20N06S3L, IPG15N06S3L 26/Nov/2010 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Infineon Technologies | |
| Series | OptiMOS™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 55V | |
| Current - Continuous Drain (Id) @ 25°C | 20A | |
| Rds On (Max) @ Id, Vgs | 23 mOhm @ 16A, 10V | |
| Vgs(th) (Max) @ Id | 2.2V @ 20µA | |
| Gate Charge (Qg) @ Vgs | 42nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2950pF @ 25V | |
| Power - Max | 45W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerVDFN | |

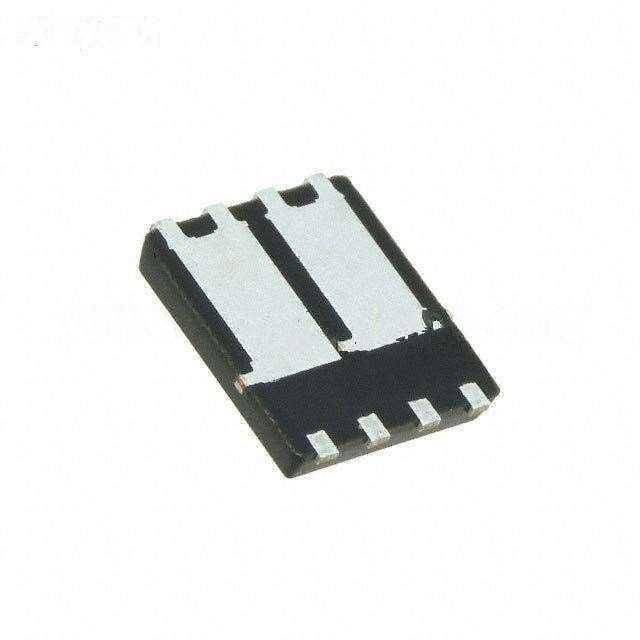

| Supplier Device Package | PG-TDSON-8-4 (5.15x6.15) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IPG20N06S3L-23 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IPG20N06S3L-23 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IPG20N06S3L-23 is new and unused, you can buy IPG20N06S3L-23 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPG20N06S3L-23.
