| Manufacturer Part Number: | IPI120N06S403AKSA2 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH TO262-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IPI120N06S403AKSA2 Datasheet |
| Internal Part Number | 898-IPI120N06S403AKSA2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | Automotive, AEC-Q101, OptiMOS™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) | |
| Rds On (Max) @ Id, Vgs | 3.2 mOhm @ 100A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 120µA | |
| Gate Charge (Qg) @ Vgs | 160nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 13150pF @ 25V | |
| Power - Max | 167W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

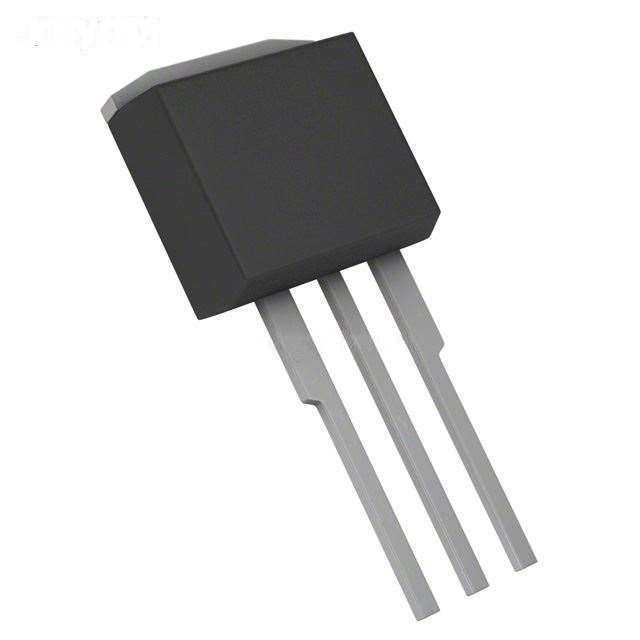

| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | |
| Supplier Device Package | PG-TO262-3-1 | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IPI120N06S403AKSA2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IPI120N06S403AKSA2 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IPI120N06S403AKSA2 is new and unused, you can buy IPI120N06S403AKSA2 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPI120N06S403AKSA2.
