| Manufacturer Part Number: | IR2238Q |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver IGBT Parallel 64-MQFP (20x14) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR2238Q Datasheet |
| Internal Part Number | 898-IR2238Q | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | AC, Synchronous | |
| Function | Controller - Commutation, Direction Management | |
| Output Configuration | Pre-Driver - Half Bridge (3) | |
| Interface | Parallel | |
| Technology | IGBT | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | - | |
| Voltage - Supply | 12.5 V ~ 20 V | |
| Voltage - Load | - | |
| Operating Temperature | -20°C ~ 115°C (TA) | |
| Mounting Type | Surface Mount | |

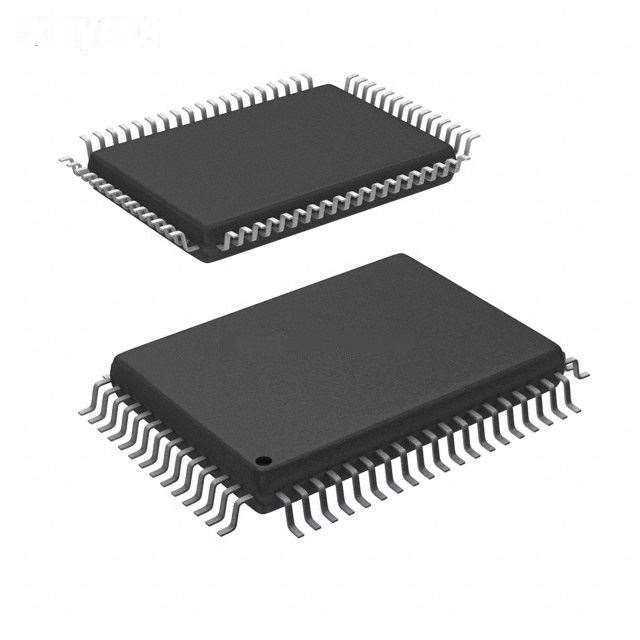

| Package / Case | 64-MQFP, 64-PQFP | |
| Supplier Device Package | 64-MQFP (20x14) | |
| Standard Package | 66 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR2238Q | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR2238Q is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR2238Q is new and unused, you can buy IR2238Q Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR2238Q.
