Manufacturer Part Number: | IRF6633TR1 |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 20V 16A DIRECTFET-MP |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IRF6633TR1 Datasheet |
Internal Part Number | 898-IRF6633TR1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Discrete Power MOSFETs 40V and Below | |
Design Resources | IRF6633TR1 Saber Model IRF6633TR1 Spice Model | |
PCN Obsolescence/ EOL | Multiple Devices 25/May/2012 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Infineon Technologies | |
Series | HEXFET® | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 20V | |
Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 59A (Tc) | |
Rds On (Max) @ Id, Vgs | 5.6 mOhm @ 16A, 10V | |
Vgs(th) (Max) @ Id | 2.2V @ 250µA | |
Gate Charge (Qg) @ Vgs | 17nC @ 4.5V | |
Input Capacitance (Ciss) @ Vds | 1250pF @ 10V | |
Power - Max | 2.3W | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

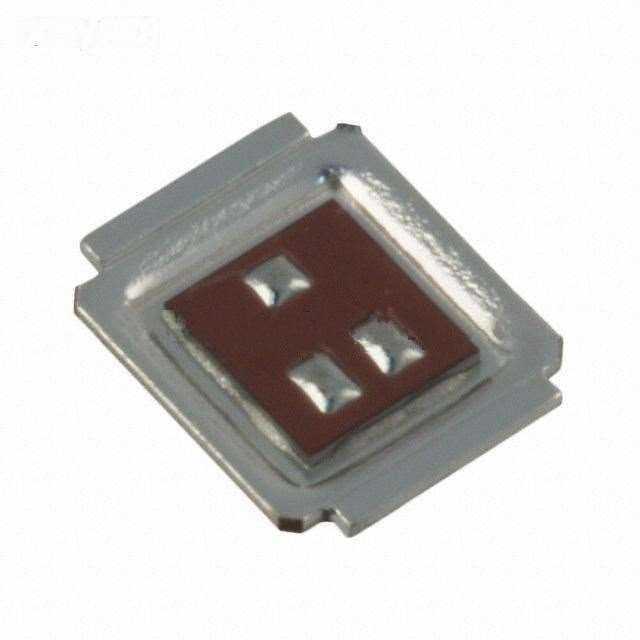

Package / Case | DirectFET™ Isometric MP | |
Supplier Device Package | DIRECTFET™ MP | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IRF6633TR1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IRF6633TR1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRF6633TR1 is new and unused, you can buy IRF6633TR1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRF6633TR1.
