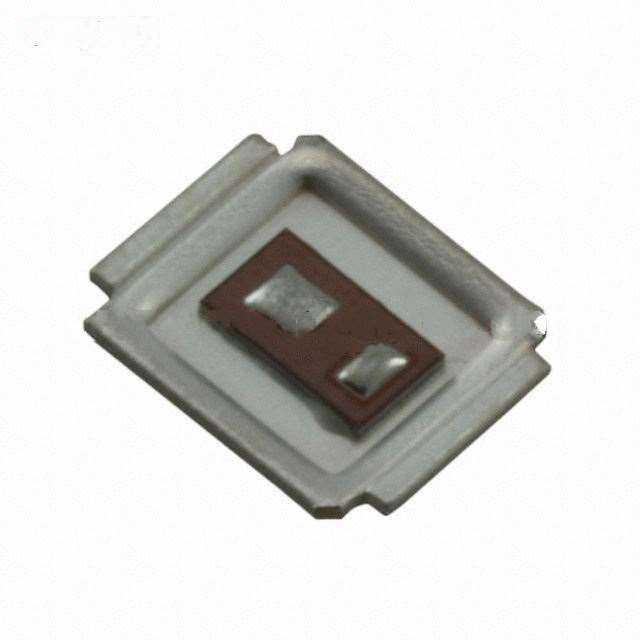

| Manufacturer Part Number: | IRF6711STR1PBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 25V 19A DIRECTFET-SQ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRF6711STR1PBF Datasheet |
| Internal Part Number | 898-IRF6711STR1PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) Discrete Power MOSFETs 40V and Below | |
| Design Resources | IRF6711STR1PBF Saber Model IRF6711STR1PBF Spice Model | |
| PCN Obsolescence/ EOL | Multiple Devices 20/Dec/2013 | |
| PCN Assembly/Origin | DirectFET Backend Wafer Processing 23/Oct/2013 | |
| PCN Other | MSL Update 20/Feb/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta), 84A (Tc) | |
| Rds On (Max) @ Id, Vgs | 3.8 mOhm @ 19A, 10V | |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | |
| Gate Charge (Qg) @ Vgs | 20nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 1810pF @ 13V | |
| Power - Max | 2.2W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | DirectFET™ Isometric SQ | |
| Supplier Device Package | DIRECTFET™ SQ | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRF6711STR1PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRF6711STR1PBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRF6711STR1PBF is new and unused, you can buy IRF6711STR1PBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRF6711STR1PBF.
