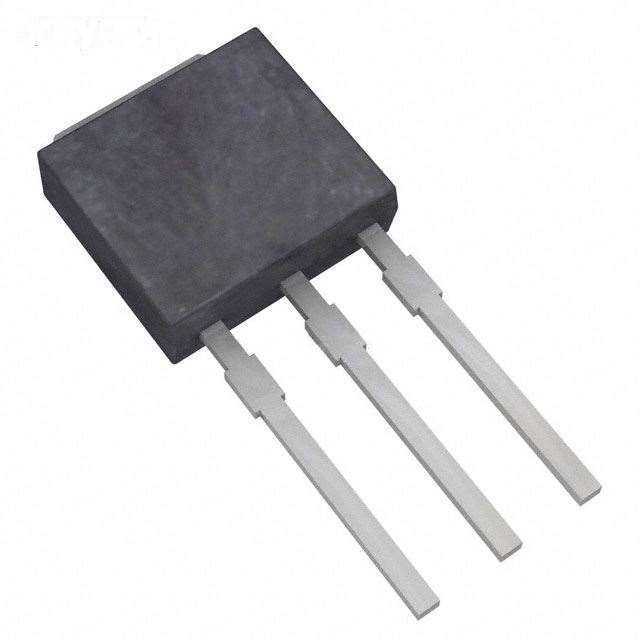

;;3.jpg)
| Manufacturer Part Number: | IRFU3607PBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9545 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 75V 56A I-PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFU3607PBF Datasheet |
| Internal Part Number | 898-IRFU3607PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Design Resources | IRFR3607PBF Saber Model IRFR3607PBF Spice Model | |
| PCN Design/Specification | Leadframe Update 02/Jun/2015 Leadframe Retraction 03/Jun/2015 | |
| PCN Assembly/Origin | Mosfet Backend Wafer Processing 23/Oct/2013 Additional Wafer Source 11/Nov/2014 IPak Product Assembly Site Add 19/Apr/2016 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 75V | |
| Current - Continuous Drain (Id) @ 25°C | 56A (Tc) | |
| Rds On (Max) @ Id, Vgs | 9 mOhm @ 46A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 100µA | |
| Gate Charge (Qg) @ Vgs | 84nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 3070pF @ 50V | |
| Power - Max | 140W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | |
| Supplier Device Package | IPAK (TO-251) | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFU3607PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFU3607PBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFU3607PBF is new and unused, you can buy IRFU3607PBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFU3607PBF.
