| Manufacturer Part Number: | IRFU9220 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 200V 3.6A I-PAK |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFU9220 Datasheet |
| Internal Part Number | 898-IRFU9220 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MOSFET Technologies for Power Conversion | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 200V | |
| Current - Continuous Drain (Id) @ 25°C | 3.6A (Tc) | |
| Rds On (Max) @ Id, Vgs | 1.5 Ohm @ 2.2A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 20nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 340pF @ 25V | |
| Power - Max | 2.5W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

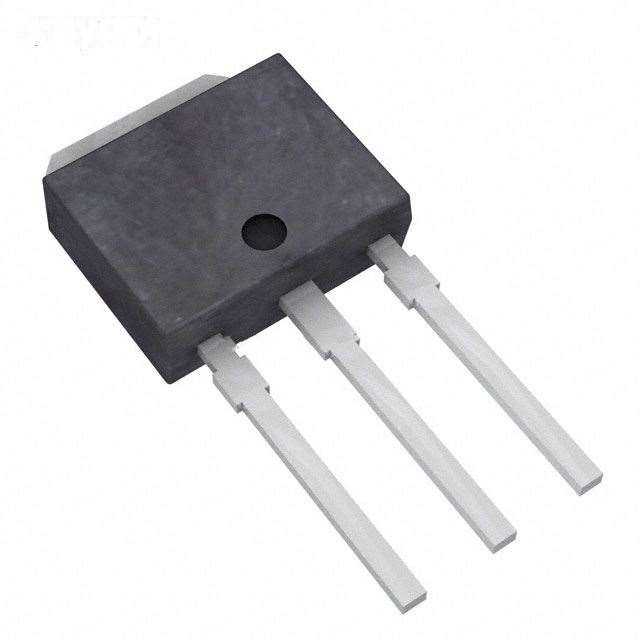

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | |
| Supplier Device Package | TO-251AA | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFU9220 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFU9220 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of IRFU9220 is new and unused, you can buy IRFU9220 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFU9220.
