| Manufacturer Part Number: | IRG4PSC71KPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9280 Pieces |
| Unit Price: | Quote by Email |

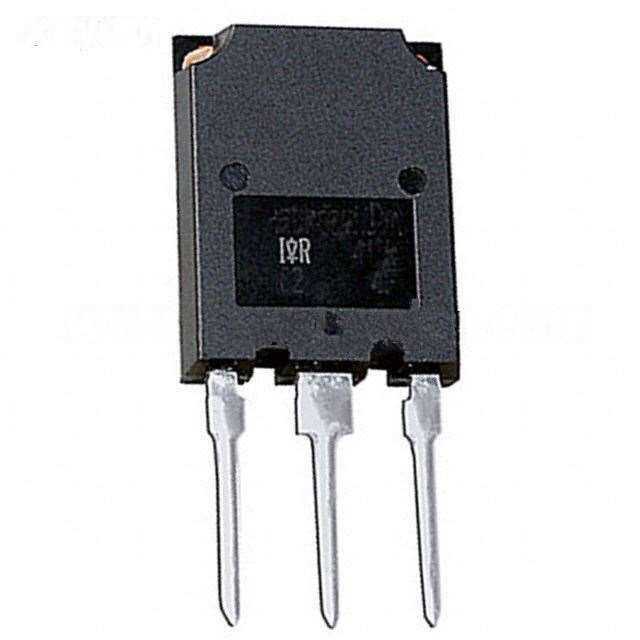

| Description: | IGBT 600V 85A 350W Through Hole SUPER-247 (TO-274AA) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRG4PSC71KPBF Datasheet |
| Internal Part Number | 898-IRG4PSC71KPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IGBT Primer Device and Applications High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Design Resources | IRG4PSC71K Saber Model IRG4PSC71K Spice Model | |
| PCN Design/Specification | Pkg Outline Chg 04/Jan/2016 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 85A | |
| Current - Collector Pulsed (Icm) | 200A | |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 60A | |
| Power - Max | 350W | |
| Switching Energy | 790µJ (on), 1.98mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 340nC | |
| Td (on/off) @ 25°C | 34ns/54ns | |
| Test Condition | 480V, 60A, 5 Ohm, 15V | |
| Reverse Recovery Time (trr) | - | |
| Package / Case | TO-274AA | |
| Mounting Type | Through Hole | |
| Supplier Device Package | SUPER-247 (TO-274AA) | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRG4PSC71KPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRG4PSC71KPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRG4PSC71KPBF is new and unused, you can buy IRG4PSC71KPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRG4PSC71KPBF.
