| Manufacturer Part Number: | IRG7PSH73K10PBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9815 Pieces |
| Unit Price: | Quote by Email |

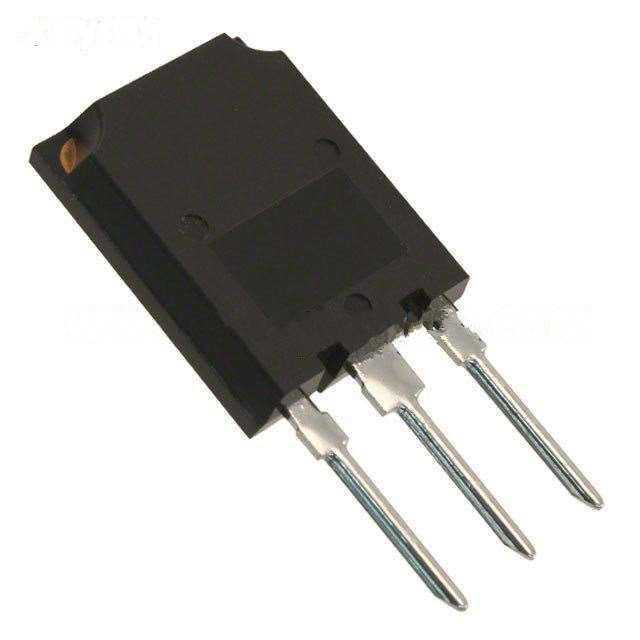

| Description: | IGBT Trench 1200V 220A 1150W Through Hole SUPER-247 (TO-274AA) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRG7PSH73K10PBF Datasheet |
| Internal Part Number | 898-IRG7PSH73K10PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IGBT Primer Device and Applications High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Design Resources | IRG7PSH73K10PBF Saber Model IRG7PSH73K10PBF Spice Model | |
| PCN Design/Specification | Pkg Outline Chg 04/Jan/2016 | |
| PCN Assembly/Origin | IGBT Backend Wafer Processing 23/Oct/2013 IGBT Wafer Fab Change 08/Nov/2013 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | Trench | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 220A | |
| Current - Collector Pulsed (Icm) | 225A | |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 75A | |
| Power - Max | 1150W | |
| Switching Energy | 7.7mJ (on), 4.6mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 360nC | |
| Td (on/off) @ 25°C | 63ns/267ns | |
| Test Condition | 600V, 75A, 4.7 Ohm, 15V | |
| Reverse Recovery Time (trr) | - | |
| Package / Case | TO-274AA | |
| Mounting Type | Through Hole | |
| Supplier Device Package | SUPER-247 (TO-274AA) | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRG7PSH73K10PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRG7PSH73K10PBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRG7PSH73K10PBF is new and unused, you can buy IRG7PSH73K10PBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRG7PSH73K10PBF.
