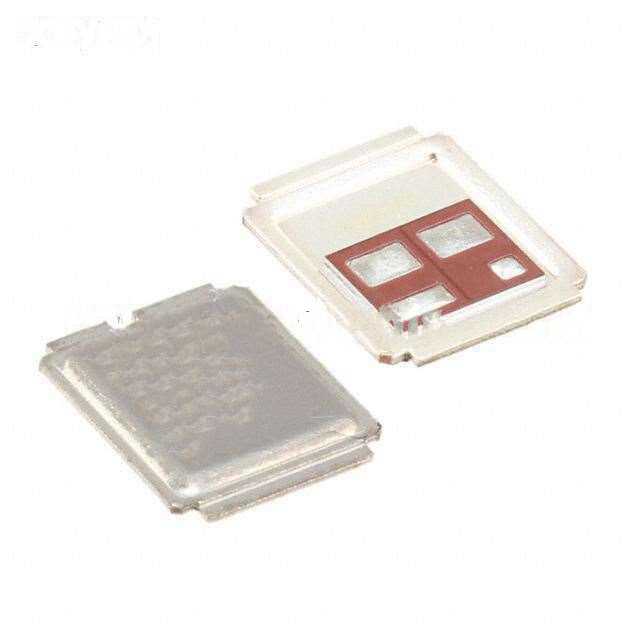

Manufacturer Part Number: | IRL6283MTRPBF |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 20V 211A DIRECTFET |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IRL6283MTRPBF Datasheet |
Internal Part Number | 898-IRL6283MTRPBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multi Mosfet EOL 2/Mar/2016 | |
PCN Assembly/Origin | Backend Wafer Transfer 23/Oct/2013 | |
PCN Packaging | Package Drawing Update 19/Aug/2015 | |
PCN Other | MSL Update 20/Feb/2014 | |
Online Catalog | N-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Infineon Technologies | |
Series | HEXFET®, StrongIRFET™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Last Time Buy | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 20V | |
Current - Continuous Drain (Id) @ 25°C | 38A (Ta), 211A (Tc) | |
Rds On (Max) @ Id, Vgs | 0.75 mOhm @ 50A, 10V | |
Vgs(th) (Max) @ Id | 1.1V @ 100µA | |
Gate Charge (Qg) @ Vgs | 158nC @ 4.5V | |
Input Capacitance (Ciss) @ Vds | 8292pF @ 10V | |
Power - Max | 2.1W | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |
Package / Case | DirectFET™ Isometric MD | |
Supplier Device Package | DIRECTFET™ MD | |
Standard Package | 4,800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IRL6283MTRPBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IRL6283MTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRL6283MTRPBF is new and unused, you can buy IRL6283MTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRL6283MTRPBF.
