Manufacturer Part Number: | IRL7486MTRPBF |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 40V 209A |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IRL7486MTRPBF Datasheet |
Internal Part Number | 898-IRL7486MTRPBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Packaging | Package Drawing Update 19/Aug/2015 | |
Online Catalog | N-Channel Logic Level Gate FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Infineon Technologies | |
Series | HEXFET®, StrongIRFET™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Logic Level Gate | |
Drain to Source Voltage (Vdss) | 40V | |
Current - Continuous Drain (Id) @ 25°C | 209A (Tc) | |
Rds On (Max) @ Id, Vgs | 1.25 mOhm @ 123A, 10V | |
Vgs(th) (Max) @ Id | 2.5V @ 150µA | |
Gate Charge (Qg) @ Vgs | 111nC @ 4.5V | |
Input Capacitance (Ciss) @ Vds | 6904pF @ 25V | |
Power - Max | 104W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

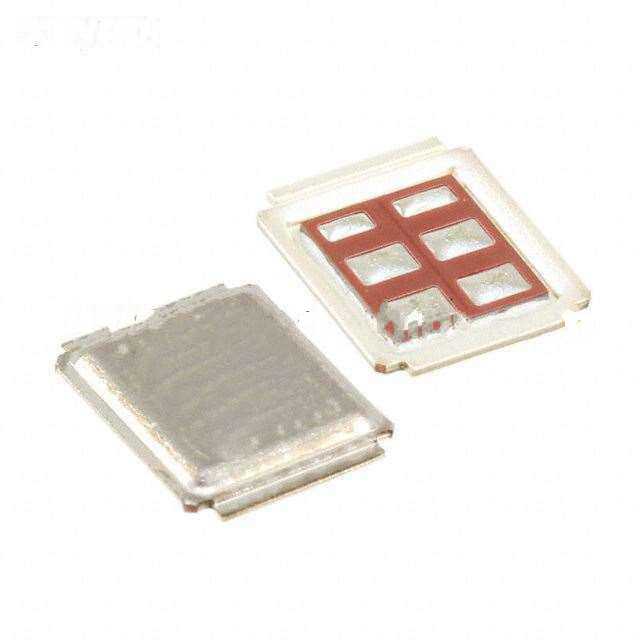

Package / Case | DirectFET™ Isometric ME | |
Supplier Device Package | DirectFET™ Isometric ME | |
Standard Package | 4,800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IRL7486MTRPBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IRL7486MTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRL7486MTRPBF is new and unused, you can buy IRL7486MTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRL7486MTRPBF.
