Manufacturer Part Number: | IRLU2905 |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 55V 42A I-PAK |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IRLU2905 Datasheet |
Internal Part Number | 898-IRLU2905 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IRLU2905 Saber Model IRLU2905 Spice Model | |
PCN Obsolescence/ EOL | HiRel EOL 28/Jun/2015 EOL122B 02/Oct/2007 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Infineon Technologies | |
Series | HEXFET® | |
Packaging | Tube | |
Part Status | Obsolete | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Logic Level Gate | |
Drain to Source Voltage (Vdss) | 55V | |
Current - Continuous Drain (Id) @ 25°C | 42A (Tc) | |
Rds On (Max) @ Id, Vgs | 27 mOhm @ 25A, 10V | |
Vgs(th) (Max) @ Id | 2V @ 250µA | |
Gate Charge (Qg) @ Vgs | 48nC @ 5V | |
Input Capacitance (Ciss) @ Vds | 1700pF @ 25V | |
Power - Max | 110W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

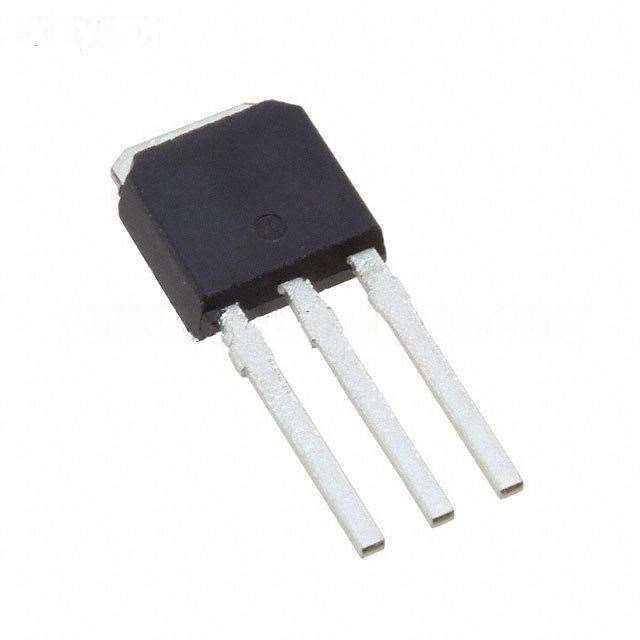

Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | |
Supplier Device Package | I-Pak | |
Standard Package | 75 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IRLU2905 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IRLU2905 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRLU2905 is new and unused, you can buy IRLU2905 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRLU2905.
