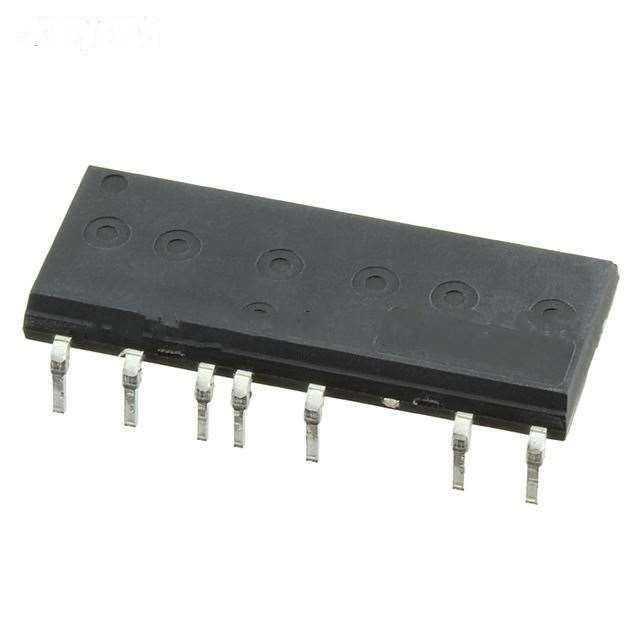

| Manufacturer Part Number: | IRSM515-035DA |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9115 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOTOR DRIVER 600V 23DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRSM515-035DA Datasheet |
| Internal Part Number | 898-IRSM515-035DA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Warehouse Transfer 29/Jul/2015 | |
| Online Catalog | Full, Half-Bridge Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | µIPM™-DIP | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Configuration | Half Bridge (3) | |
| Applications | AC Motors | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | UMOS | |
| Rds On (Typ) | 1.8 Ohm | |
| Current - Output / Channel | 2.1A | |
| Current - Peak Output | 15A | |
| Voltage - Supply | 13.5 V ~ 16.5 V | |
| Voltage - Load | 400V (Max) | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Features | Bootstrap Circuit | |
| Fault Protection | UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 23-DIP Module | |
| Supplier Device Package | 23-DIP | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRSM515-035DA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRSM515-035DA is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRSM515-035DA is new and unused, you can buy IRSM515-035DA Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRSM515-035DA.
