| Manufacturer Part Number: | ISL3036EIRZ-T7A |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Logic - Translators, Level Shifters |
| Available Quantity: | 9507 Pieces |
| Unit Price: | Quote by Email |
| Description: | Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps 14-QFN (3.5x3.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL3036EIRZ-T7A Datasheet |
| Internal Part Number | 898-ISL3036EIRZ-T7A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 10/Jun/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Translators, Level Shifters | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Translator Type | Voltage Level | |
| Channel Type | Bidirectional | |
| Number of Circuits | 1 | |
| Channels per Circuit | 4 | |
| Voltage - VCCA | 1.35 V ~ 3.2 V | |
| Voltage - VCCB | 2.2 V ~ 3.6 V | |
| Input Signal | - | |
| Output Signal | - | |
| Output Type | Open Drain, Push-Pull | |
| Data Rate | 100Mbps | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Features | Auto-Direction Sensing | |
| Mounting Type | Surface Mount | |

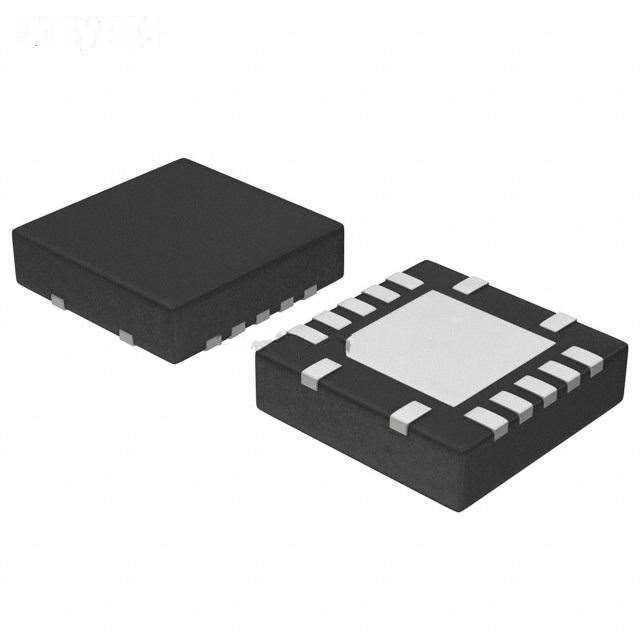

| Package / Case | 14-VFQFN Exposed Pad | |
| Supplier Device Package | 14-QFN (3.5x3.5) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL3036EIRZ-T7A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL3036EIRZ-T7A is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL3036EIRZ-T7A is new and unused, you can buy ISL3036EIRZ-T7A Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL3036EIRZ-T7A.
