| Manufacturer Part Number: | ISL85001IRZ |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9562 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1A 12-VFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL85001IRZ Datasheet |
| Internal Part Number | 898-ISL85001IRZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ISL8018 8 A High Efficiency Buck Regulator | |
| PCN Design/Specification | Bond Wire Material 11/Jun/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 25V | |
| Voltage - Output (Min/Fixed) | 0.6V | |
| Voltage - Output (Max) | 19V | |
| Current - Output | 1A | |
| Frequency - Switching | 500kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

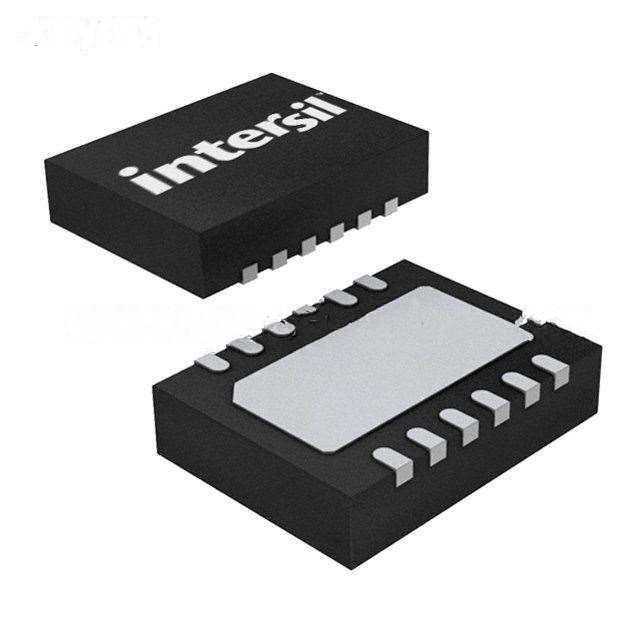

| Package / Case | 12-VFDFN Exposed Pad | |
| Supplier Device Package | 12-DFN (4x3) | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL85001IRZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL85001IRZ is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL85001IRZ is new and unused, you can buy ISL85001IRZ Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL85001IRZ.
