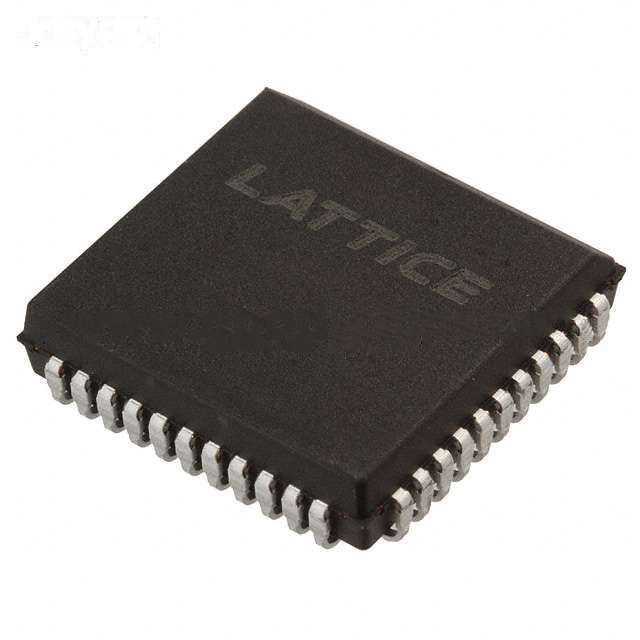

| Manufacturer Part Number: | ISPLSI 1016E-125LJN |
|---|---|
| Manufacturer: | Lattice Semiconductor Corporation |
| Product Category: | Embedded - CPLDs (Complex Programmable Logic Devices) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC CPLD 64MC 7.5NS 44PLCC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISPLSI 1016E-125LJN Datasheet |
| Internal Part Number | 898-ISPLSI 1016E-125LJN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Tin/Lead Devices 23/Jun/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - CPLDs (Complex Programmable Logic Devices) | |
| Manufacturer | Lattice Semiconductor Corporation | |
| Series | ispLSI® 1000E | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Programmable Type | In System Programmable | |
| Delay Time tpd(1) Max | 7.5ns | |
| Voltage Supply - Internal | 4.75 V ~ 5.25 V | |
| Number of Logic Elements/Blocks | 16 | |
| Number of Macrocells | 64 | |
| Number of Gates | 2000 | |
| Number of I/O | 32 | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 44-LCC (J-Lead) | |
| Supplier Device Package | 44-PLCC (16.58x16.58) | |
| Standard Package | 26 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISPLSI 1016E-125LJN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISPLSI 1016E-125LJN is in stock for immediate shipping now. We are the distributor of Lattice Semiconductor Corporation all series components. The condition of ISPLSI 1016E-125LJN is new and unused, you can buy ISPLSI 1016E-125LJN Lattice Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISPLSI 1016E-125LJN.
