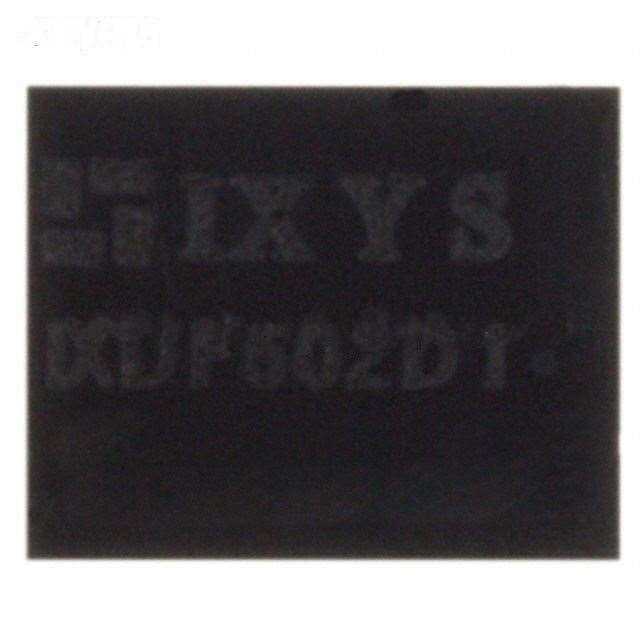

| Manufacturer Part Number: | IXDF502D1T/R |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOSF DRIVER FAST DUAL 6-DFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXDF502D1T/R Datasheet |
| Internal Part Number | 898-IXDF502D1T/R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Driven Configuration | Low-Side | |
| Channel Type | Independent | |
| Number of Drivers | 2 | |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | |
| Voltage - Supply | 4.5 V ~ 30 V | |
| Logic Voltage - VIL, VIH | 0.8V, 3V | |
| Current - Peak Output (Source, Sink) | 2A, 2A | |
| Input Type | Inverting, Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | - | |
| Rise / Fall Time (Typ) | 7.5ns, 6.5ns | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-VDFN Exposed Pad | |
| Supplier Device Package | 6-DFN (4x5) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXDF502D1T/R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXDF502D1T/R is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXDF502D1T/R is new and unused, you can buy IXDF502D1T/R IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXDF502D1T/R.
