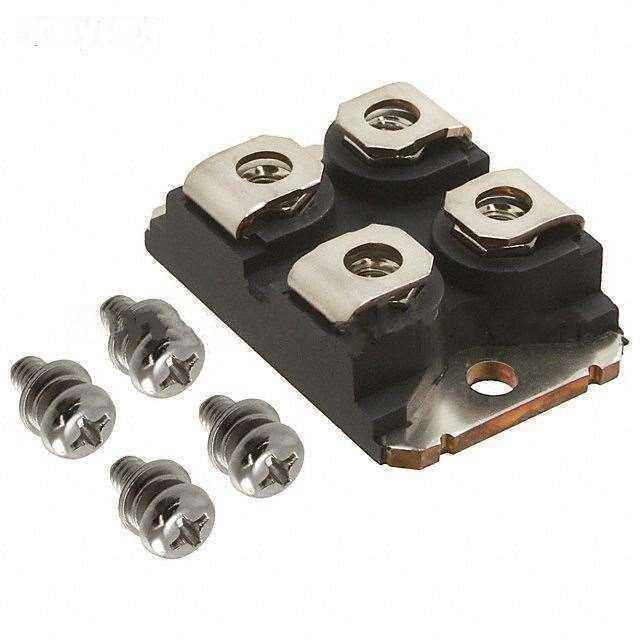

| Manufacturer Part Number: | IXGN320N60A3 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9080 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module PT Single 600V 320A 735W Chassis Mount SOT-227B |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXGN320N60A3 Datasheet |
| Internal Part Number | 898-IXGN320N60A3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | IXGN GenX3™ Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | IXYS | |
| Series | GenX3™ | |
| Part Status | Active | |
| IGBT Type | PT | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 320A | |
| Power - Max | 735W | |
| Vce(on) (Max) @ Vge, Ic | 1.25V @ 15V, 100A | |
| Current - Collector Cutoff (Max) | 150µA | |
| Input Capacitance (Cies) @ Vce | 18nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | SOT-227-4, miniBLOC | |
| Supplier Device Package | SOT-227B | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXGN320N60A3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXGN320N60A3 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXGN320N60A3 is new and unused, you can buy IXGN320N60A3 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXGN320N60A3.
