| Manufacturer Part Number: | IXGQ28N120BD1 |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 1200V 50A 250W Through Hole TO-3P |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXGQ28N120BD1 Datasheet |
| Internal Part Number | 898-IXGQ28N120BD1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 50A | |
| Current - Collector Pulsed (Icm) | 150A | |
| Vce(on) (Max) @ Vge, Ic | 3.5V @ 15V, 28A | |
| Power - Max | 250W | |
| Switching Energy | 2mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 92nC | |
| Td (on/off) @ 25°C | 30ns/180ns | |
| Test Condition | 960V, 28A, 5 Ohm, 15V | |
| Reverse Recovery Time (trr) | 40ns | |

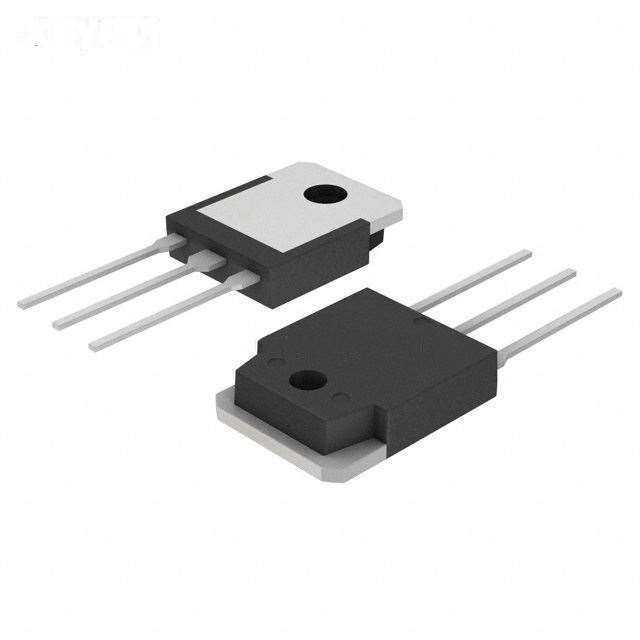

| Package / Case | TO-3P-3, SC-65-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-3P | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXGQ28N120BD1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXGQ28N120BD1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXGQ28N120BD1 is new and unused, you can buy IXGQ28N120BD1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXGQ28N120BD1.
