| Manufacturer Part Number: | IXTA3N120HV |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9110 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 1.2KV 3A TO263 |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXTA3N120HV Datasheet |
| Internal Part Number | 898-IXTA3N120HV | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | IXYS | |
| Series | - | |
| Packaging | Tube | |
| Part Status | New Product | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) | |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) | |
| Rds On (Max) @ Id, Vgs | 4.5 Ohm @ 500mA, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 42nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1100pF @ 25V | |
| Power - Max | 200W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

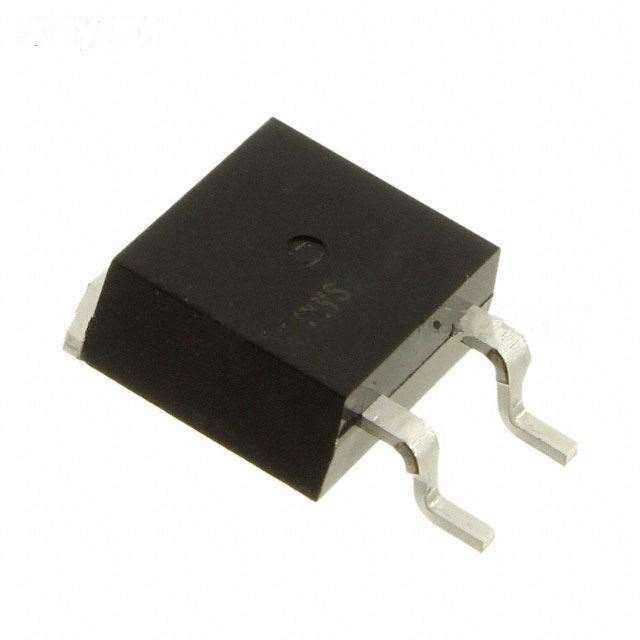

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | |
| Supplier Device Package | TO-263 | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXTA3N120HV | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXTA3N120HV is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXTA3N120HV is new and unused, you can buy IXTA3N120HV IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXTA3N120HV.
