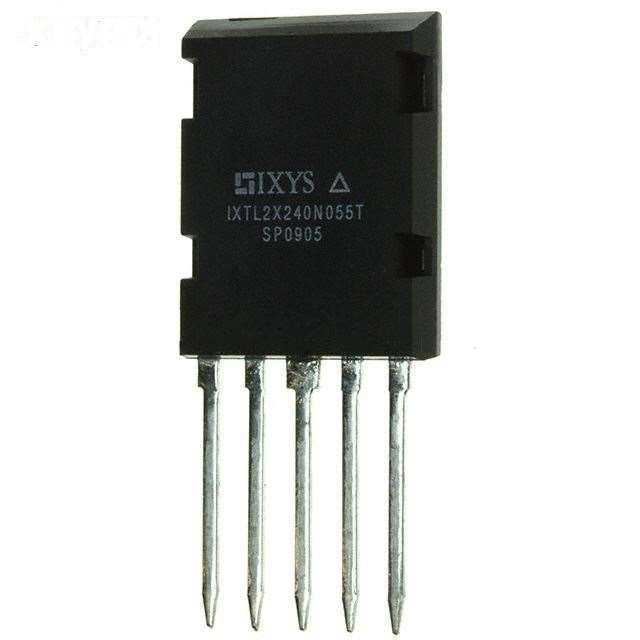

Manufacturer Part Number: | IXTL2X240N055T |
---|---|
Manufacturer: | IXYS |
Product Category: | Transistors - FETs, MOSFETs - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET 2N-CH 55V 140A ISOPLUS I5 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IXTL2X240N055T Datasheet |
Internal Part Number | 898-IXTL2X240N055T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | IXT Series 30/Oct/2012 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Arrays | |
Manufacturer | IXYS | |
Series | TrenchMV™ | |
Packaging | Tube | |
Part Status | Obsolete | |
FET Type | 2 N-Channel (Dual) | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 55V | |
Current - Continuous Drain (Id) @ 25°C | 140A | |
Rds On (Max) @ Id, Vgs | 4.4 mOhm @ 50A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 250µA | |
Gate Charge (Qg) @ Vgs | 170nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 7600pF @ 25V | |
Power - Max | 150W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | ISOPLUSi5-Pak™ | |
Supplier Device Package | ISOPLUSi5-Pak™ | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IXTL2X240N055T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IXTL2X240N055T is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXTL2X240N055T is new and unused, you can buy IXTL2X240N055T IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXTL2X240N055T.
