Manufacturer Part Number: | JAN1N4960US |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

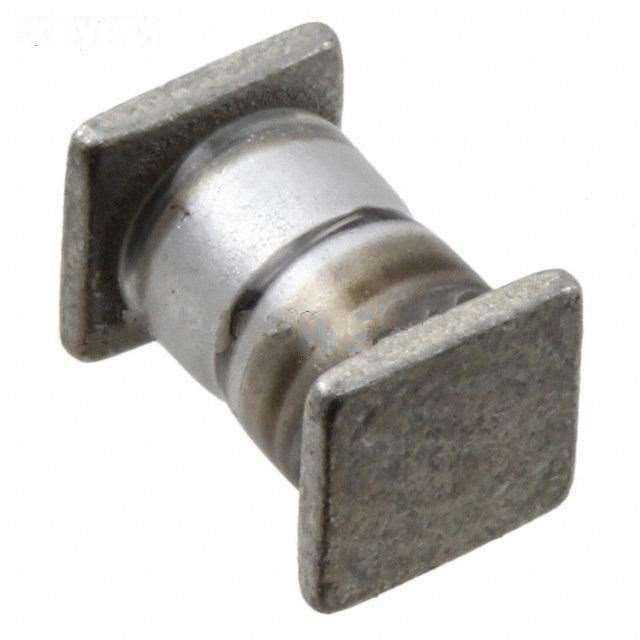

Description: | Zener Diode 12V 5W ±5% Surface Mount D-5B |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JAN1N4960US Datasheet |
Internal Part Number | 898-JAN1N4960US | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Microsemi IRE Division | |
Series | Military, MIL-PRF-19500/356 | |
Packaging | Bulk | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 12V | |
Tolerance | ±5% | |
Power - Max | 5W | |
Impedance (Max) (Zzt) | 2.5 Ohm | |
Current - Reverse Leakage @ Vr | 10µA @ 9.1V | |
Voltage - Forward (Vf) (Max) @ If | 1.5V @ 1A | |
Operating Temperature | -65°C ~ 175°C | |
Mounting Type | Surface Mount | |
Package / Case | E-MELF | |
Supplier Device Package | D-5B | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JAN1N4960US | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JAN1N4960US is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JAN1N4960US is new and unused, you can buy JAN1N4960US Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JAN1N4960US.
