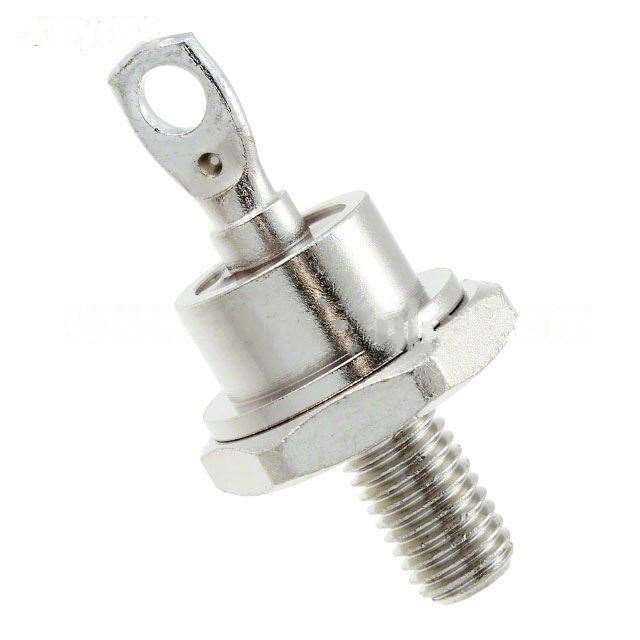

| Manufacturer Part Number: | JANTX1N1190R |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 600V 35A DO5 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX1N1190R Datasheet |
| Internal Part Number | 898-JANTX1N1190R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/297 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 600V | |
| Current - Average Rectified (Io) | 35A | |
| Voltage - Forward (Vf) (Max) @ If | 1.4V @ 110A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 10µA @ 600V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Stud Mount | |
| Package / Case | DO-203AB, DO-5, Stud | |
| Supplier Device Package | DO-5 | |
| Operating Temperature - Junction | -65°C ~ 175°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX1N1190R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX1N1190R is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX1N1190R is new and unused, you can buy JANTX1N1190R Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX1N1190R.
