| Manufacturer Part Number: | L9362013TR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DRIVER QUAD LOW SIDE POWERSO3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | L9362013TR Datasheet |
| Internal Part Number | 898-L9362013TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | L9362 View All Specifications | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 4 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | Low Side | |
| Output Type | N-Channel | |
| Interface | SPI | |
| Voltage - Load | 4.5 V ~ 5.5 V | |
| Voltage - Supply (Vcc/Vdd) | - | |
| Current - Output (Max) | 3A | |
| Rds On (Typ) | 250 mOhm | |
| Input Type | - | |
| Features | - | |
| Fault Protection | Open Load Detect, Over Temperature | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |

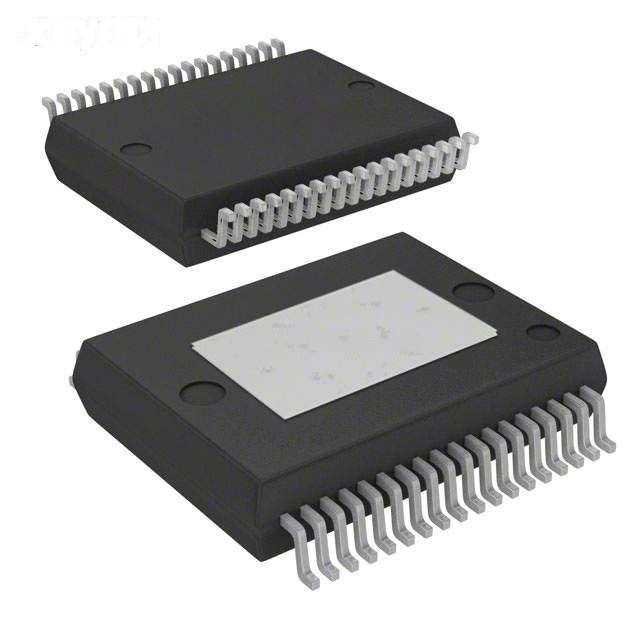

| Package / Case | PowerSO-36 Exposed Bottom Pad | |
| Supplier Device Package | PowerSO-36 | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | L9362013TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
L9362013TR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of L9362013TR is new and unused, you can buy L9362013TR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L9362013TR.
