| Manufacturer Part Number: | LAN8740A-EN |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Interface - Drivers, Receivers, Transceivers |
| Available Quantity: | 9695 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1/1 Transceiver Full Ethernet 32-SQFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LAN8740A-EN Datasheet |
| Internal Part Number | 898-LAN8740A-EN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | LAN8740A Schematic Checklist | |
| PCN Design/Specification | Data Sheet Rev 12/Jan/2016 | |
| PCN Assembly/Origin | Qualification Assembly Site 19/Mar/2014 Fabrication Site Addition 17/Dec/2014 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | Ethernet Transceivers | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Drivers, Receivers, Transceivers | |
| Manufacturer | Microchip Technology | |
| Series | flexPWR™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Transceiver | |
| Protocol | Ethernet | |
| Number of Drivers/Receivers | 1/1 | |
| Duplex | Full | |
| Receiver Hysteresis | - | |
| Data Rate | 100Mbps | |
| Voltage - Supply | 1.8 V ~ 3.3 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

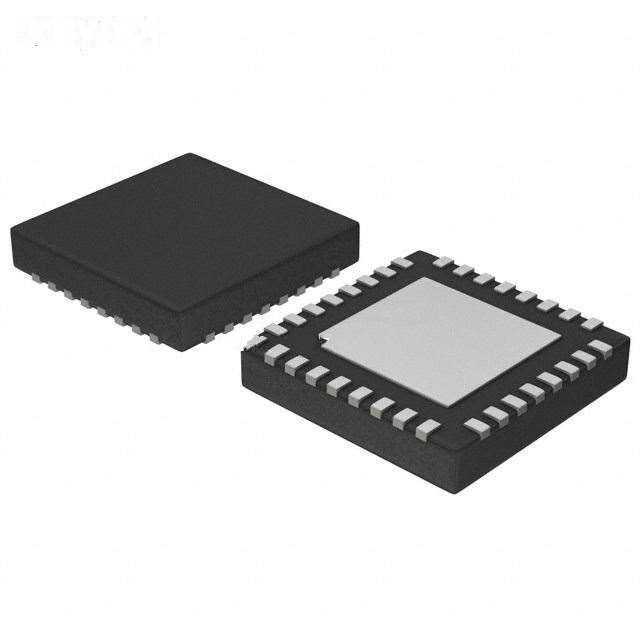

| Package / Case | 32-VFQFN Exposed Pad | |
| Supplier Device Package | 32-SQFN (5x5) | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LAN8740A-EN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LAN8740A-EN is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of LAN8740A-EN is new and unused, you can buy LAN8740A-EN Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LAN8740A-EN.
