| Manufacturer Part Number: | LAN8820-ABZJ |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Interface - Drivers, Receivers, Transceivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1/1 Transceiver Full Ethernet 56-QFN (8x8) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LAN8820-ABZJ Datasheet |
| Internal Part Number | 898-LAN8820-ABZJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Errata/Datasheet Update 10/Dec/2014 Datasheet Update 22/Dec/2014 LAN8820,Lan8820i RGMII Datasheet Update 28/Oct/2015 | |
| PCN Assembly/Origin | Qualification Assembly Site 19/Mar/2014 SCC Site Qualification 20/Apr/2015 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Drivers, Receivers, Transceivers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Transceiver | |
| Protocol | Ethernet | |
| Number of Drivers/Receivers | 1/1 | |
| Duplex | Full | |
| Receiver Hysteresis | - | |
| Data Rate | - | |
| Voltage - Supply | 2.25 V ~ 2.75 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

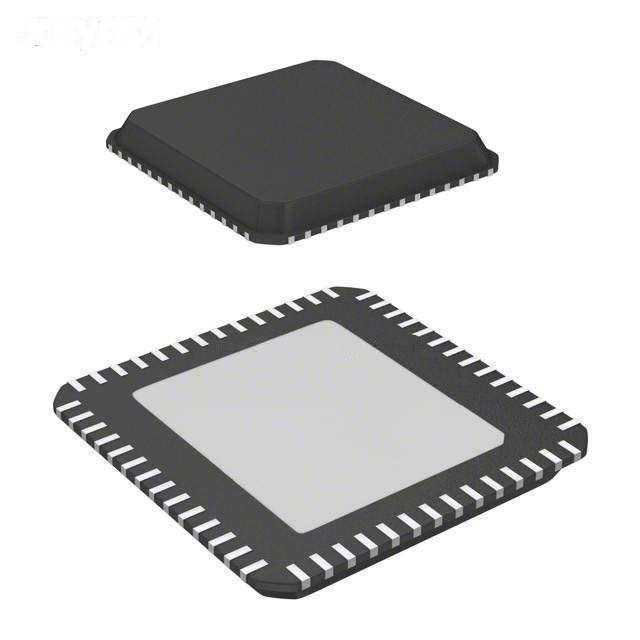

| Package / Case | 56-VFQFN Exposed Pad | |
| Supplier Device Package | 56-QFN (8x8) | |
| Standard Package | 260 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LAN8820-ABZJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LAN8820-ABZJ is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of LAN8820-ABZJ is new and unused, you can buy LAN8820-ABZJ Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LAN8820-ABZJ.
