| Manufacturer Part Number: | LCMXO2-1200UHC-4FTG256C |
|---|---|
| Manufacturer: | Lattice Semiconductor Corporation |
| Product Category: | Embedded - FPGAs (Field Programmable Gate Array) |
| Available Quantity: | 9190 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC FPGA 206 I/O 256FTBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCMXO2-1200UHC-4FTG256C Datasheet |
| Internal Part Number | 898-LCMXO2-1200UHC-4FTG256C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Multiple Devices Cu Wire 01/Jul/2013 MachXO2 Family Datasheet 30/Sep/2013 Datasheet Chg 21/Mar/2016 | |
| PCN Assembly/Origin | Alternate Qualified Test Site 30/Sep/2013 Alternate Assembly Revision B 17/Nov/2014 Alternate Assembly/Test Site 06/Oct/2014 Alternate Assembly Revision B 17/Nov/2014 Alternate Assembly/Test Site 14/Apr/2014 | |
| PCN Other | I2C Read-Back Failure Feb/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | MachXO2 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - FPGAs (Field Programmable Gate Array) | |
| Manufacturer | Lattice Semiconductor Corporation | |
| Series | MachXO2 | |
| Part Status | Active | |
| Number of LABs/CLBs | 160 | |
| Number of Logic Elements/Cells | 1280 | |
| Total RAM Bits | 75776 | |
| Number of I/O | 206 | |
| Number of Gates | - | |
| Voltage - Supply | 2.375 V ~ 3.465 V | |
| Mounting Type | Surface Mount | |
| Operating Temperature | 0°C ~ 85°C (TJ) | |

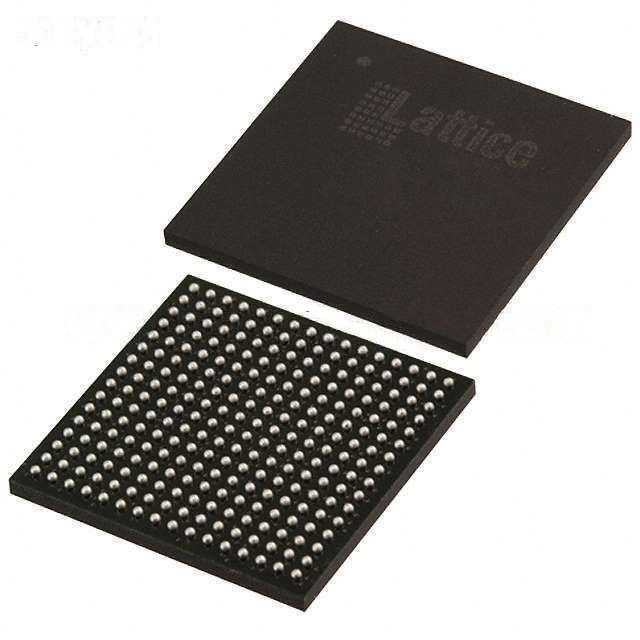

| Package / Case | 256-LBGA | |
| Supplier Device Package | 256-FTBGA (17x17) | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCMXO2-1200UHC-4FTG256C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCMXO2-1200UHC-4FTG256C is in stock for immediate shipping now. We are the distributor of Lattice Semiconductor Corporation all series components. The condition of LCMXO2-1200UHC-4FTG256C is new and unused, you can buy LCMXO2-1200UHC-4FTG256C Lattice Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCMXO2-1200UHC-4FTG256C.
