| Manufacturer Part Number: | LFUSCD20120B |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9267 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Silicon Carbide Schottky 1200V (1.2kV) 10A (DC) Through Hole TO-247-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LFUSCD20120B Datasheet |
| Internal Part Number | 898-LFUSCD20120B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Silicon Carbide Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Littelfuse Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Silicon Carbide Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) | |
| Current - Average Rectified (Io) (per Diode) | 10A (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 20A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 250µA @ 1200V | |
| Mounting Type | Through Hole | |

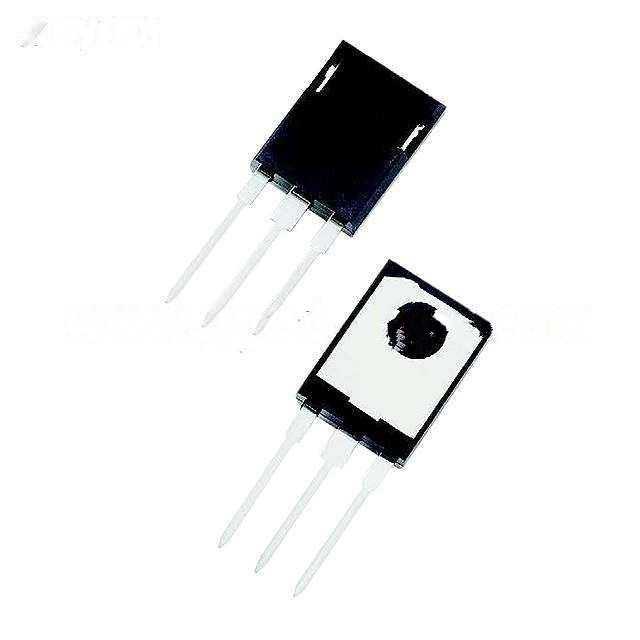

| Package / Case | TO-247-3 | |
| Supplier Device Package | TO-247AD | |
| Standard Package | 240 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LFUSCD20120B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LFUSCD20120B is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of LFUSCD20120B is new and unused, you can buy LFUSCD20120B Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LFUSCD20120B.
