| Manufacturer Part Number: | LP8550TLE/NOPB |
|---|---|
| Manufacturer: | T-I |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 10277 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) PWM Dimming 50mA 25-DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LP8550TLE/NOPB Datasheet |
| Internal Part Number | 898-LP8550TLE/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Lighting Driver Solutions | |
| Design Resources | Lighting Product Selector | |
| PCN Design/Specification | LP8545/LP8550,1,2,3 Datasheet Update 12/May/2014 | |
| Manufacturer Product Page | LP8550TLE/NOPB Specifications | |
| Online Catalog | DC DC Regulator | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 6 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 22V | |
| Voltage - Output | 40V | |
| Current - Output / Channel | 50mA | |
| Frequency | - | |
| Dimming | PWM | |
| Applications | Backlight | |
| Operating Temperature | -30°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

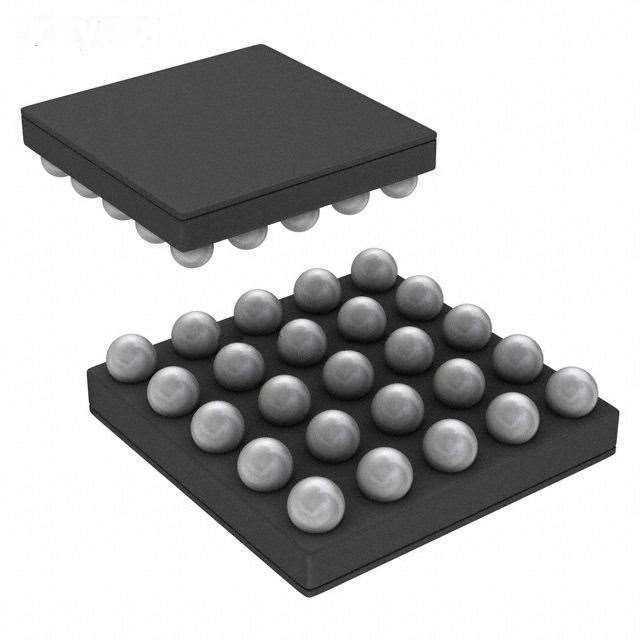

| Package / Case | 25-WFBGA, DSBGA | |
| Supplier Device Package | 25-DSBGA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LP8550TLE/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LP8550TLE/NOPB is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of LP8550TLE/NOPB is new and unused, you can buy LP8550TLE/NOPB T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP8550TLE/NOPB.
