Manufacturer Part Number: | LQA20T300C |
---|---|
Manufacturer: | Power Integrations |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Array 1 Pair Common Cathode Schottky 300V 10A Through Hole TO-220-3 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LQA20T300C Datasheet |
Internal Part Number | 898-LQA20T300C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Qspeed™ Series Advanced Diodes | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | Power Integrations | |
Series | Qspeed™ | |
Packaging | Tube | |
Part Status | Active | |
Diode Configuration | 1 Pair Common Cathode | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 300V | |
Current - Average Rectified (Io) (per Diode) | 10A | |
Voltage - Forward (Vf) (Max) @ If | 1.9V @ 10A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 12.6ns | |
Current - Reverse Leakage @ Vr | 25µA @ 300V | |
Mounting Type | Through Hole | |

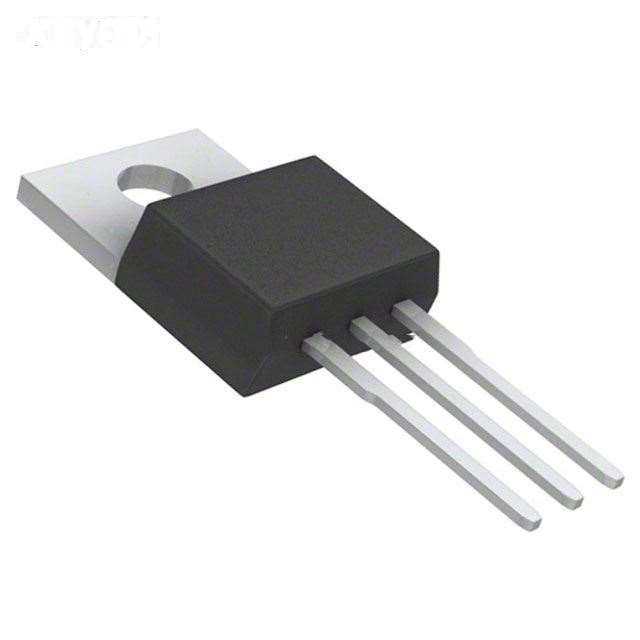

Package / Case | TO-220-3 | |
Supplier Device Package | TO-220AB | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LQA20T300C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LQA20T300C is in stock for immediate shipping now. We are the distributor of Power Integrations all series components. The condition of LQA20T300C is new and unused, you can buy LQA20T300C Power Integrations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQA20T300C.
