| Manufacturer Part Number: | LV8805SV-MPB-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver Bi-CMOS PWM 20-SSOPJ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LV8805SV-MPB-H Datasheet |
| Internal Part Number | 898-LV8805SV-MPB-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Cooling Fan Motor Drivers Motor Driver in White Goods Applications | |
| PCN Obsolescence/ EOL | 2Q2016 Product EOL 22/Jul/2016 | |
| PCN Design/Specification | LV8805 Datasheet Update 04/Mar/2015 LV8805 Datasheet Update 04/May/2015 | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Box (TB) | |
| Part Status | Last Time Buy | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushless DC (BLDC) | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (3) | |
| Interface | PWM | |
| Technology | Bi-CMOS | |
| Step Resolution | - | |
| Applications | Fan Motor Driver | |
| Current - Output | 1.2A | |
| Voltage - Supply | 6 V ~ 15 V | |
| Voltage - Load | 6 V ~ 15 V | |
| Operating Temperature | -40°C ~ 95°C (TA) | |
| Mounting Type | Surface Mount | |

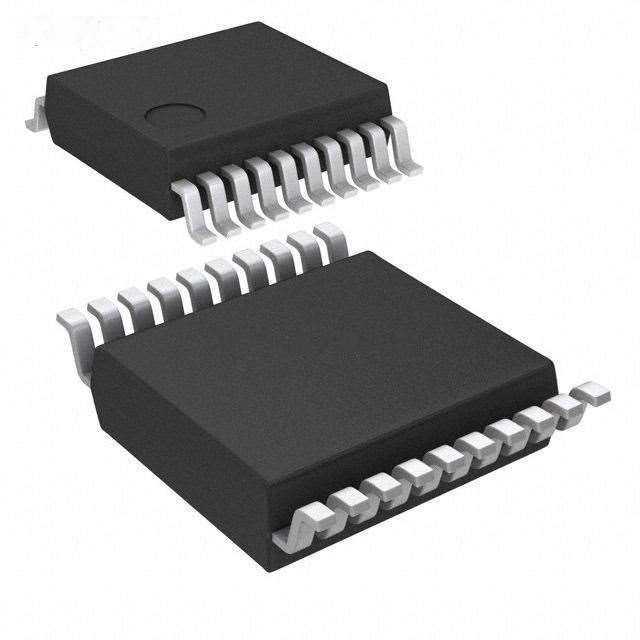

| Package / Case | 20-LFSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 20-SSOPJ | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LV8805SV-MPB-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LV8805SV-MPB-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of LV8805SV-MPB-H is new and unused, you can buy LV8805SV-MPB-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LV8805SV-MPB-H.
