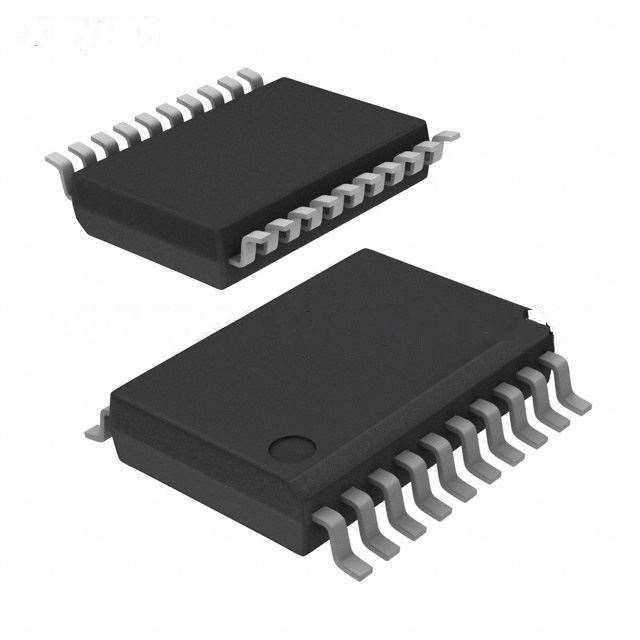

| Manufacturer Part Number: | LX1689IPW |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Lighting, Ballast Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC CTLR CCFL BACKLIGHT 20-TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX1689IPW Datasheet |
| Internal Part Number | 898-LX1689IPW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Lighting, Ballast Controllers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| Type | CCFL Controller | |
| Frequency | 63kHz ~ 67kHz | |
| Voltage - Supply | 3 V ~ 28 V | |
| Current - Supply | 10mA | |
| Current - Output Source/Sink | - | |
| Dimming | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | |
| Drawing Number | * | |
| Mfr Reel Diameter | * | |
| Mfr Reel Tape Material | * | |
| Mfr Reel Tape Width | * | |
| Supplier Device Package | 20-TSSOP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX1689IPW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX1689IPW is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX1689IPW is new and unused, you can buy LX1689IPW Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX1689IPW.
