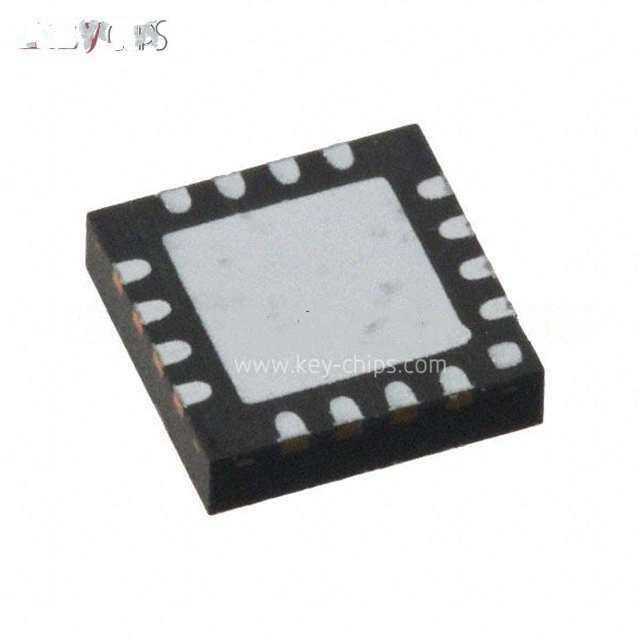

| Manufacturer Part Number: | LX1744CLQ |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 2 Output DC DC Controller Step-Up (Boost) Analog, PWM Dimming 16-MLPQ (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX1744CLQ Datasheet |
| Internal Part Number | 898-LX1744CLQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | DC DC Controller | |
| Topology | Step-Up (Boost) | |
| Internal Switch(s) | No | |
| Number of Outputs | 2 | |
| Voltage - Supply (Min) | 1.6V | |
| Voltage - Supply (Max) | 6V | |
| Voltage - Output | 25V | |
| Current - Output / Channel | - | |
| Frequency | - | |
| Dimming | Analog, PWM | |
| Applications | Backlight | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-VQFN Exposed Pad | |
| Supplier Device Package | 16-MLPQ (4x4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX1744CLQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX1744CLQ is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX1744CLQ is new and unused, you can buy LX1744CLQ Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX1744CLQ.
