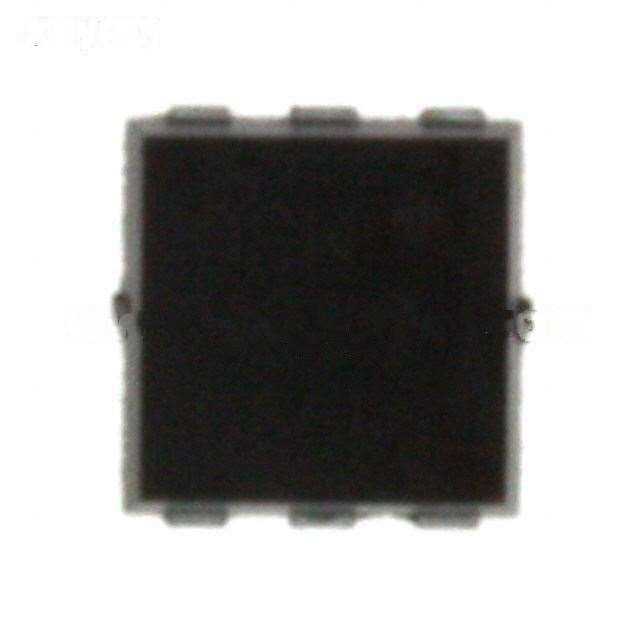

LX1990ILM

LX1990ILM
Manufacturer Part Number:LX1990ILM
Manufacturer:
Product Category:PMIC - LED Drivers
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:LED Driver IC 2 Output Linear PWM Dimming 30mA 6-MLP (3x3)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: LX1990ILM Datasheet
LX1990ILM´s Parameters
Internal Part Number898-LX1990ILM
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Design ResourcesLighting Product Selector
PCN Obsolescence/ EOLMultiple Devices 20/Mar/2014
LX1990ILM Devices 19/Jun/2014
CategoryIntegrated Circuits (ICs)
FamilyPMIC - LED Drivers
ManufacturerMicrosemi Corporation
Series-
PackagingBulk
Part StatusObsolete
TypeLinear
Topology-
Internal Switch(s)Yes
Number of Outputs2
Voltage - Supply (Min)2.7V
Voltage - Supply (Max)5.5V
Voltage - Output0.1 V ~ 10 V
Current - Output / Channel30mA
Frequency-
DimmingPWM
ApplicationsBacklight
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-MLP (3x3)
Standard Package 3,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartLX1990ILM
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

LX1990ILM is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX1990ILM is new and unused, you can buy LX1990ILM Microsemi Corporation with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for LX1990ILM.
