| Manufacturer Part Number: | LYT4226E |
|---|---|
| Manufacturer: | Power Integrations |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output AC DC Offline Switcher Flyback, Step-Down (Buck), Step-Up (Boost) 6.88A (Switch) eSIP-7C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LYT4226E Datasheet |
| Internal Part Number | 898-LYT4226E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Assembly/Origin | Assembly Site Addition 21/Oct/2014 | |
| PCN Other | Multiple Changes 11/Nov/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Power Integrations | |
| Series | LYTSwitch™-4 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | AC DC Offline Switcher | |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 160VAC | |
| Voltage - Supply (Max) | 300VAC | |
| Voltage - Output | - | |
| Current - Output / Channel | 6.88A (Switch) | |
| Frequency | 132kHz | |
| Dimming | - | |
| Applications | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | 7-SIP, 6 Leads, Exposed Pad, Formed Leads | |

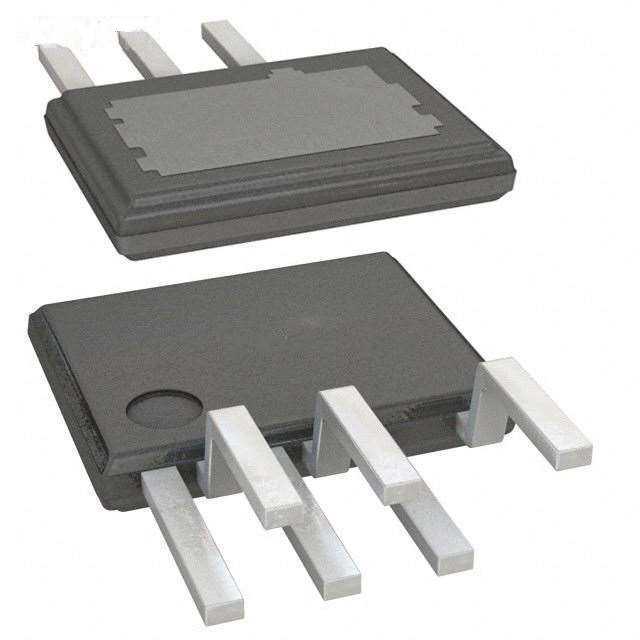

| Supplier Device Package | eSIP-7C | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LYT4226E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LYT4226E is in stock for immediate shipping now. We are the distributor of Power Integrations all series components. The condition of LYT4226E is new and unused, you can buy LYT4226E Power Integrations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LYT4226E.
