| Manufacturer Part Number: | M09000G-14 |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9450 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 3 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 1.2A 40-QFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M09000G-14 Datasheet |
| Internal Part Number | 898-M09000G-14 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | DC DC Regulator | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 3 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 5.25V | |
| Voltage - Output | 4.6V | |
| Current - Output / Channel | 1.2A | |
| Frequency | 12.5kHz | |
| Dimming | PWM | |
| Applications | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

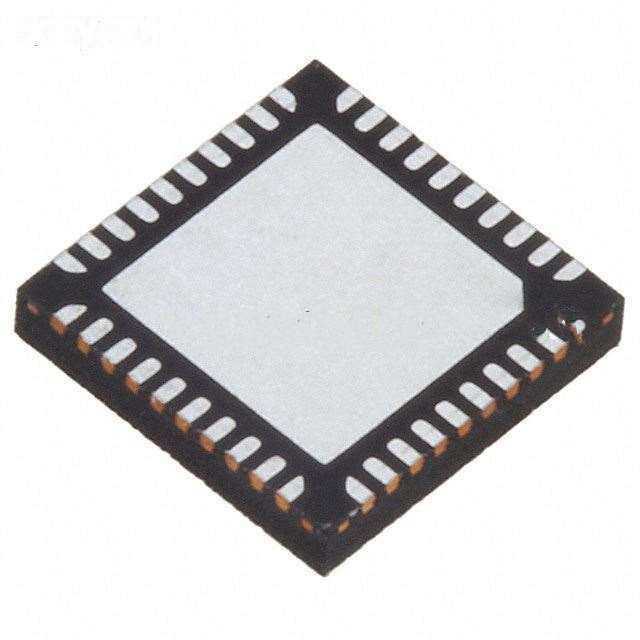

| Package / Case | 40-VFQFN Exposed Pad | |
| Supplier Device Package | 40-QFN (5x5) | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M09000G-14 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M09000G-14 is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of M09000G-14 is new and unused, you can buy M09000G-14 M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M09000G-14.
