| Manufacturer Part Number: | MA21D380GL |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Schottky 30V 1A Surface Mount Smini2-F2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MA21D380GL Datasheet |
| Internal Part Number | 898-MA21D380GL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 420mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 13ns | |
| Current - Reverse Leakage @ Vr | 100µA @ 30V | |
| Capacitance @ Vr, F | 40pF @ 10V, 1MHz | |
| Mounting Type | Surface Mount | |

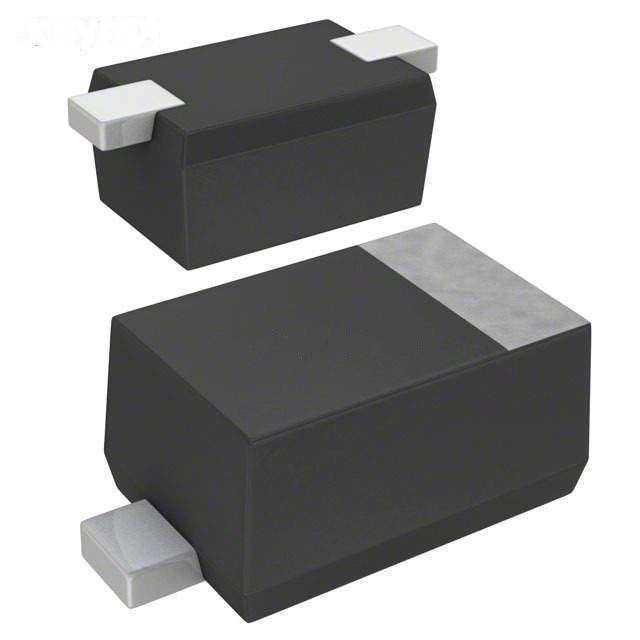

| Package / Case | 2-SMD, Flat Lead | |
| Supplier Device Package | Smini2-F2 | |
| Operating Temperature - Junction | 125°C (Max) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MA21D380GL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MA21D380GL is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of MA21D380GL is new and unused, you can buy MA21D380GL Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MA21D380GL.
