| Manufacturer Part Number: | MAX5482EUD+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | Data Acquisition - Digital Potentiometers |
| Available Quantity: | 9445 Pieces |
| Unit Price: | Quote by Email |
| Description: | Digital Potentiometer 50k Ohm 1 Circuit 1024 Taps SPI Interface 14-TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX5482EUD+ Datasheet |
| Internal Part Number | 898-MAX5482EUD+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Damage from a Lightning Bolt or a Spark Logging the Linear Digital Potentiometer How to Calculate the Wiper Voltage of a Digital Potentiometer Self-Starting Can Be Hard to Do - Understanding Power-on-Reset Requirements in Regulators and Bandgaps | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 1024 Taps | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital Potentiometers | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Taper | Linear | |
| Configuration | Potentiometer | |
| Number of Circuits | 1 | |
| Number of Taps | 1024 | |
| Resistance (Ohms) | 50k | |
| Interface | SPI | |
| Memory Type | Non-Volatile | |
| Voltage - Supply | 2.7 V ~ 5.25 V, ±2.5 V ~ 5.25 V | |
| Features | - | |
| Tolerance | - | |
| Temperature Coefficient (Typ) | 35 ppm/°C | |
| Resistance - Wiper (Ohms) (Typ) | 50 | |
| Operating Temperature | -40°C ~ 85°C | |

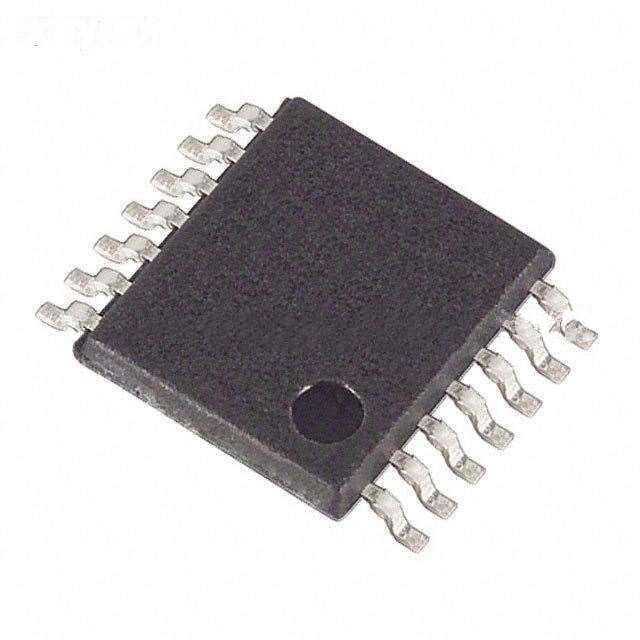

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 14-TSSOP | |
| Standard Package | 96 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX5482EUD+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX5482EUD+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX5482EUD+ is new and unused, you can buy MAX5482EUD+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX5482EUD+.
