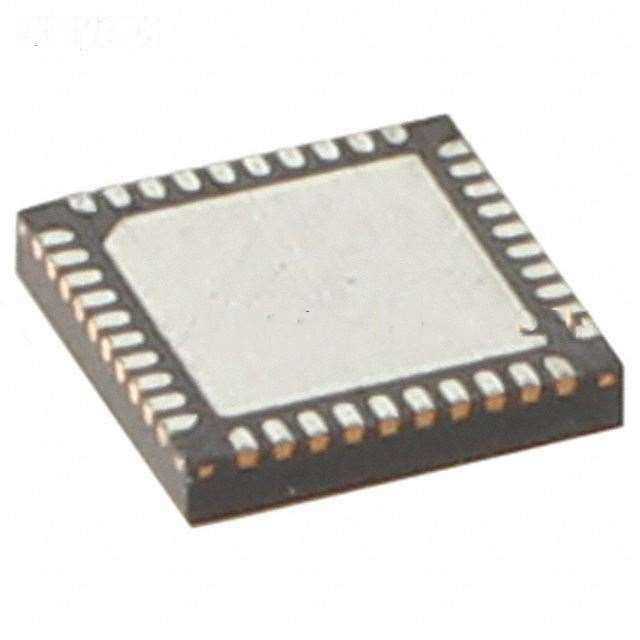

| Manufacturer Part Number: | MCP8024T-H/MP |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver Power MOSFET PWM 40-QFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP8024T-H/MP Datasheet |
| Internal Part Number | 898-MCP8024T-H/MP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | MCP8024 Brushless DC Power Module | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushless DC (BLDC) | |
| Function | Controller - Commutation, Direction Management | |
| Output Configuration | Pre-Driver - Half Bridge (3) | |
| Interface | PWM | |
| Technology | Power MOSFET | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | - | |
| Voltage - Supply | 6 V ~ 28 V | |
| Voltage - Load | - | |
| Operating Temperature | -40°C ~ 150°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 40-VFQFN Exposed Pad | |
| Supplier Device Package | 40-QFN (5x5) | |
| Standard Package | 3,300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP8024T-H/MP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP8024T-H/MP is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP8024T-H/MP is new and unused, you can buy MCP8024T-H/MP Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP8024T-H/MP.
