Manufacturer Part Number: | MDO500-12N1 |
---|---|
Manufacturer: | IXYS |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9056 Pieces |
Unit Price: | Quote by Email |

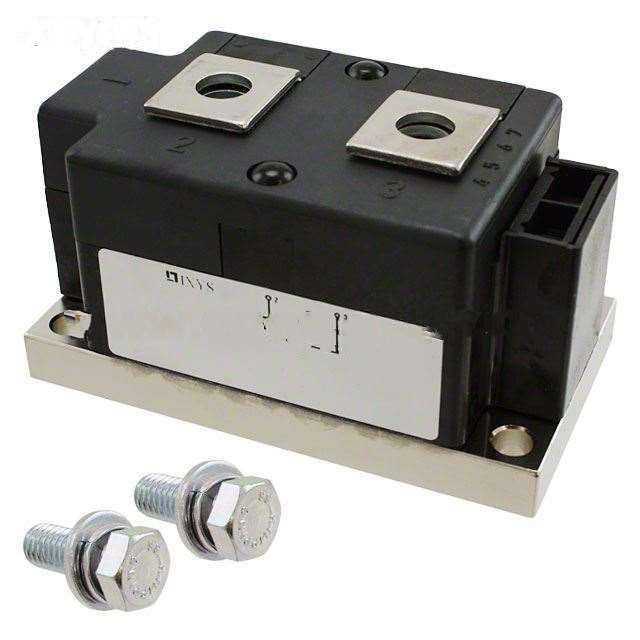

Description: | DIODE MODULE 1.2KV 560A Y1-CU |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MDO500-12N1 Datasheet |
Internal Part Number | 898-MDO500-12N1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Standard Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | IXYS | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) | |
Current - Average Rectified (Io) | 560A | |
Voltage - Forward (Vf) (Max) @ If | 1.3V @ 1200A | |
Speed | Standard Recovery >500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 30mA @ 1200V | |
Capacitance @ Vr, F | 762pF @ 400V, 1MHz | |
Mounting Type | Chassis Mount | |
Package / Case | Y1-CU | |
Supplier Device Package | Y1-CU | |
Operating Temperature - Junction | * | |
Standard Package | 3 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MDO500-12N1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MDO500-12N1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of MDO500-12N1 is new and unused, you can buy MDO500-12N1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDO500-12N1.
