| Manufacturer Part Number: | MIC2159YMME |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9306 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-MSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIC2159YMME Datasheet |
| Internal Part Number | 898-MIC2159YMME | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Assembly/Test Site Addition 20/Oct/2014 Wafer Size Update 02/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Microchip Technology | |
| Series | SYNCHRONOUS-itty™ | |
| Packaging | * | |
| Part Status | Active | |
| Output Type | Transistor Driver | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Number of Outputs | 1 | |
| Output Phases | 1 | |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 14.5 V | |
| Frequency - Switching | 400kHz | |
| Duty Cycle (Max) | 92% | |
| Synchronous Rectifier | Yes | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Current Limit, Enable | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |

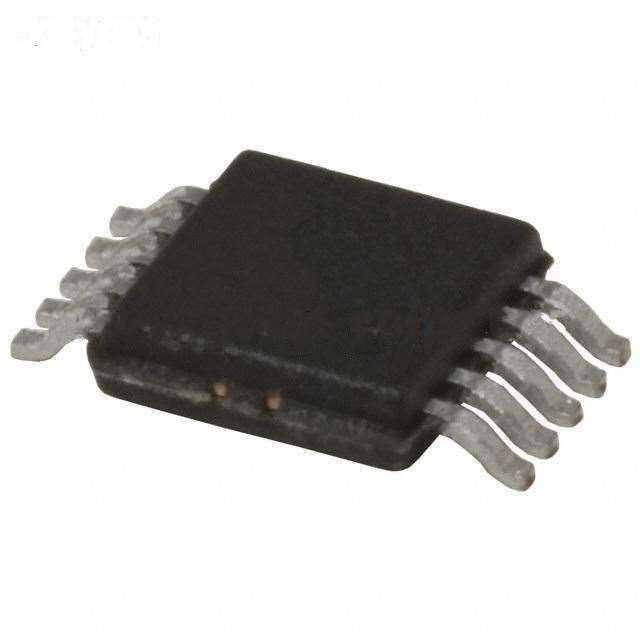

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | |
| Supplier Device Package | 10-MSOP | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIC2159YMME | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIC2159YMME is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC2159YMME is new and unused, you can buy MIC2159YMME Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC2159YMME.
