| Manufacturer Part Number: | MIC22400YML-TR |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 4A 20-VFQFN Exposed Pad, 20-MLF® |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MIC22400YML-TR Datasheet |
| Internal Part Number | 898-MIC22400YML-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer Size Update 02/Sep/2015 | |
| PCN Part Number | Micrel to Microchip PN Changes 7/Oct/2015 | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.6V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 0.7V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 4A | |
| Frequency - Switching | 1MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

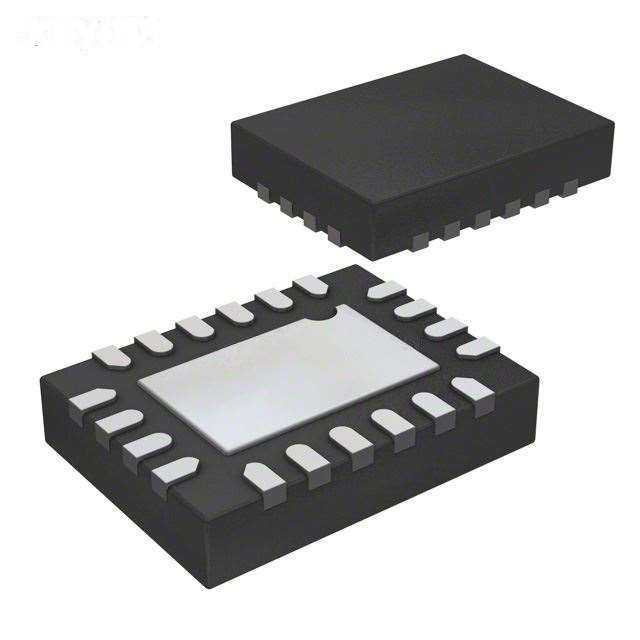

| Package / Case | 20-VFQFN Exposed Pad, 20-MLF® | |
| Supplier Device Package | 20-MLF® (3x4) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MIC22400YML-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MIC22400YML-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC22400YML-TR is new and unused, you can buy MIC22400YML-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC22400YML-TR.
