Manufacturer Part Number: | MMBFJ175LT1 |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Transistors - JFETs |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | JFET P-Channel 30V 7mA @ 15V 225mW Surface Mount SOT-23-3 (TO-236) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MMBFJ175LT1 Datasheet |
Internal Part Number | 898-MMBFJ175LT1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 14/Apr/2010 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - JFETs | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Obsolete | |
FET Type | P-Channel | |
Voltage - Breakdown (V(BR)GSS) | 30V | |
Drain to Source Voltage (Vdss) | - | |
Current - Drain (Idss) @ Vds (Vgs=0) | 7mA @ 15V | |
Current Drain (Id) - Max | - | |
Voltage - Cutoff (VGS off) @ Id | 3V @ 10nA | |
Input Capacitance (Ciss) @ Vds | 11pF @ 10V (VGS) | |
Resistance - RDS(On) | 125 Ohm | |
Mounting Type | Surface Mount | |

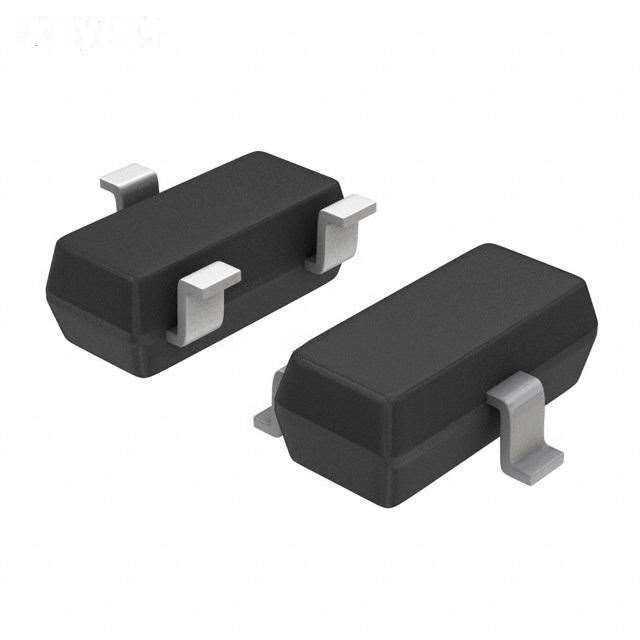

Package / Case | TO-236-3, SC-59, SOT-23-3 | |
Supplier Device Package | SOT-23-3 (TO-236) | |
Power - Max | 225mW | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MMBFJ175LT1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MMBFJ175LT1 is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of MMBFJ175LT1 is new and unused, you can buy MMBFJ175LT1 ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MMBFJ175LT1.
