| Manufacturer Part Number: | MPC563MZP66R2 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | PowerPC MPC5xx Microcontroller IC 32-Bit 66MHz 512KB (512K x 8) FLASH 388-PBGA (27x27) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPC563MZP66R2 Datasheet |
| Internal Part Number | 898-MPC563MZP66R2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | MPC5xx | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Core Processor | PowerPC | |
| Core Size | 32-Bit | |
| Speed | 66MHz | |
| Connectivity | CAN, EBI/EMI, SCI, SPI, UART/USART | |
| Peripherals | POR, PWM, WDT | |
| Number of I/O | 56 | |
| Program Memory Size | 512KB (512K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 32K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.5 V ~ 2.7 V | |
| Data Converters | A/D 32x10b | |
| Oscillator Type | External | |
| Operating Temperature | -40°C ~ 125°C (TA) | |

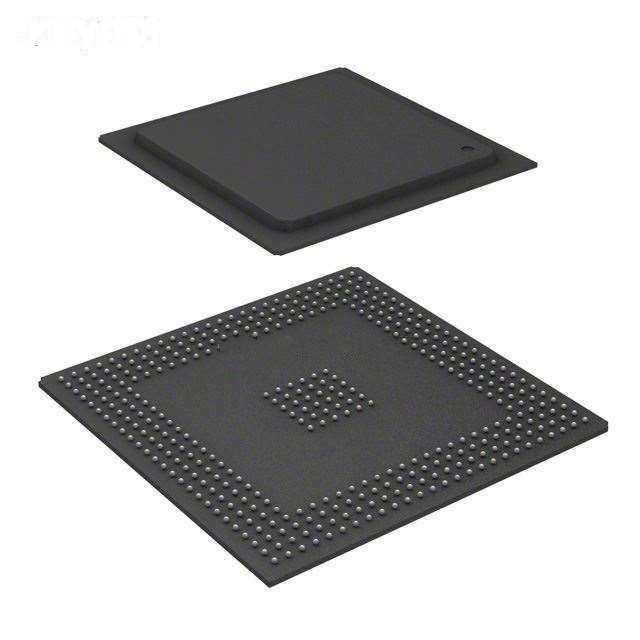

| Package / Case | 388-BBGA | |
| Supplier Device Package | 388-PBGA (27x27) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPC563MZP66R2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPC563MZP66R2 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MPC563MZP66R2 is new and unused, you can buy MPC563MZP66R2 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPC563MZP66R2.
