| Manufacturer Part Number: | MPC8309CVMAFDCA |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microprocessors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

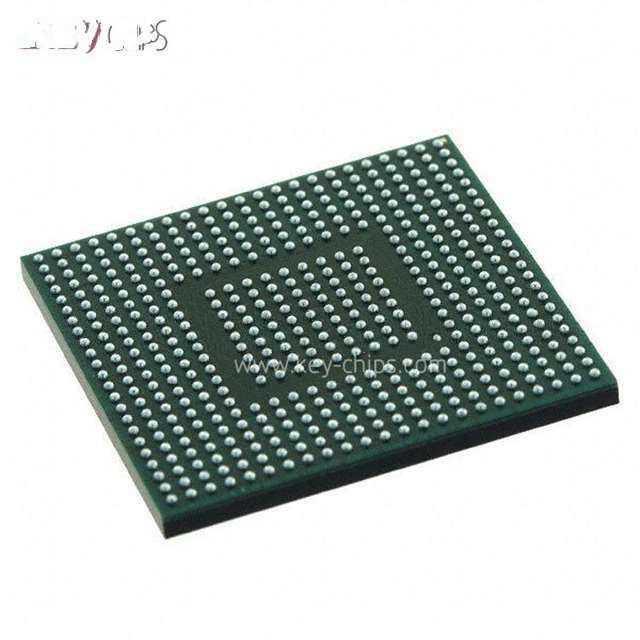

| Description: | PowerPC e300c3 Microprocessor IC MPC83xx 1 Core, 32-Bit 333MHz 489-PBGA (19x19) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPC8309CVMAFDCA Datasheet |
| Internal Part Number | 898-MPC8309CVMAFDCA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | MPC830x MAPBGA Family Wire 29/May/2013 8306/09 Families Datasheet Update 11/Jul/2013 MPC8309 Datasheet Update 25/Apr/2014 MPC8306,8,9 Signal Updates 15/Dec/2014 Errata Update 03/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microprocessors | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | MPC83xx | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | PowerPC e300c3 | |
| Number of Cores/Bus Width | 1 Core, 32-Bit | |
| Speed | 333MHz | |
| Co-Processors/DSP | Communications; QUICC Engine | |
| RAM Controllers | DDR2 | |
| Graphics Acceleration | No | |
| Display & Interface Controllers | - | |
| Ethernet | 10/100 Mbps (3) | |
| SATA | - | |
| USB | USB 2.0 (1) | |
| Voltage - I/O | 1.8V, 3.3V | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Security Features | - | |
| Package / Case | 489-LFBGA | |
| Supplier Device Package | 489-PBGA (19x19) | |
| Additional Interfaces | CAN, DUART, I²C, MMC/SD, PCI, SPI, TDM | |
| Standard Package | 84 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPC8309CVMAFDCA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPC8309CVMAFDCA is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MPC8309CVMAFDCA is new and unused, you can buy MPC8309CVMAFDCA NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPC8309CVMAFDCA.
