MPSW92G

MPSW92G
Manufacturer Part Number:MPSW92G
Manufacturer:
Product Category:Transistors - Bipolar (BJT) - Single
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:TRANS PNP 300V 0.5A TO92
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: MPSW92G Datasheet
MPSW92G´s Parameters
Internal Part Number898-MPSW92G
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
PCN Obsolescence/ EOLMultiple Devices 02/Jan/2007
CategoryDiscrete Semiconductor Products
FamilyTransistors - Bipolar (BJT) - Single
ManufacturerON Semiconductor
Series-
PackagingBulk
Part StatusObsolete
Transistor TypePNP
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)300V
Vce Saturation (Max) @ Ib, Ic500mV @ 2mA, 20mA
Current - Collector Cutoff (Max)250nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce25 @ 30mA, 10V
Power - Max1W
Frequency - Transition50MHz
Mounting TypeThrough Hole

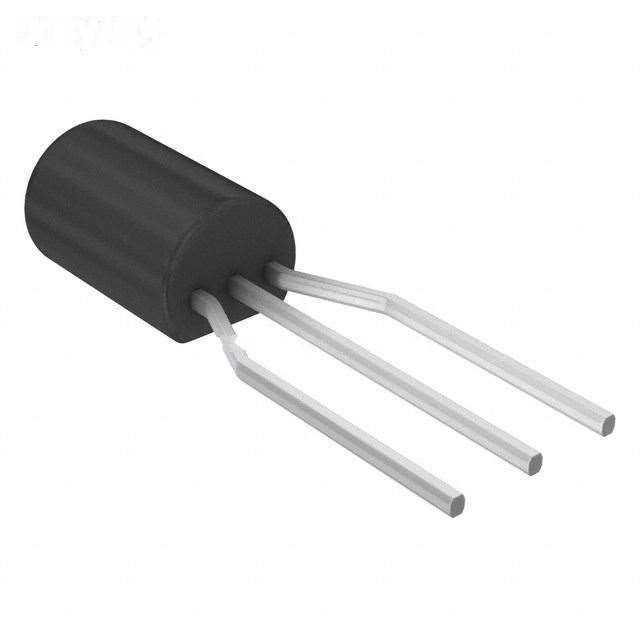

Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92
Standard Package 5,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartMPSW92G
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

MPSW92G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of MPSW92G is new and unused, you can buy MPSW92G ON Semiconductor with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for MPSW92G.
